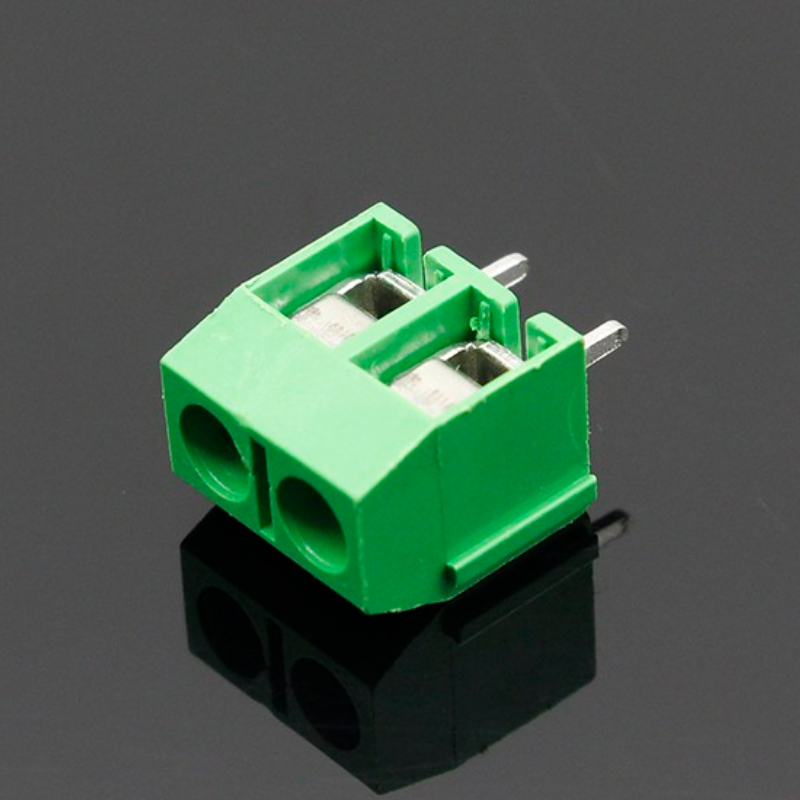

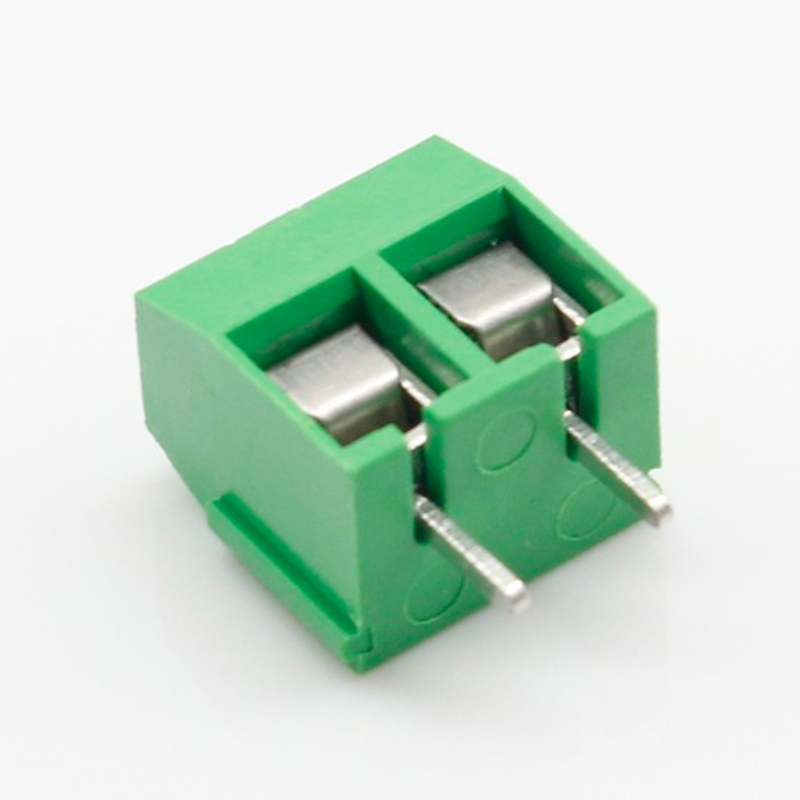

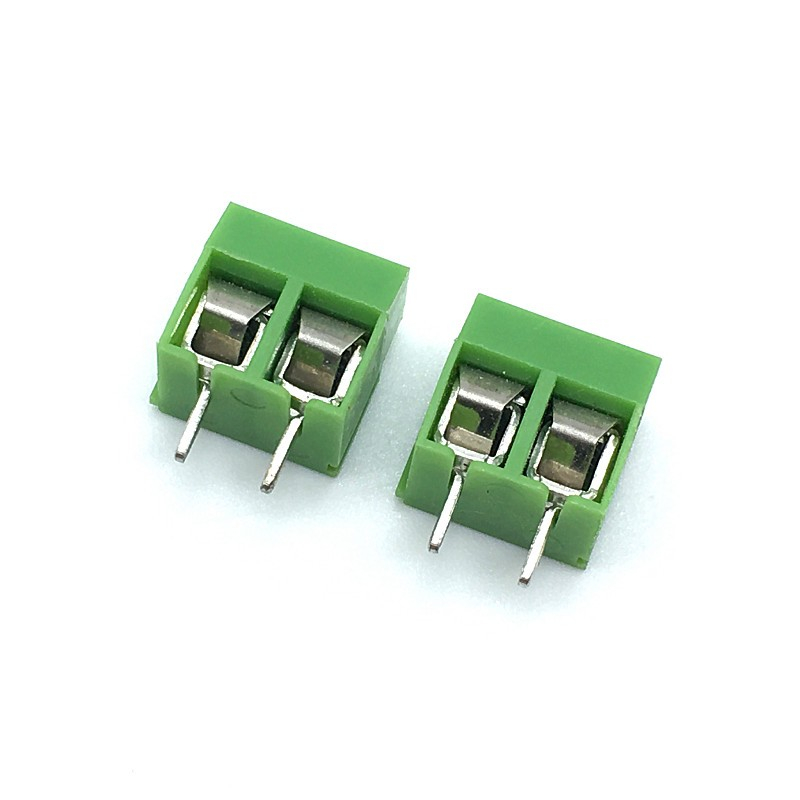

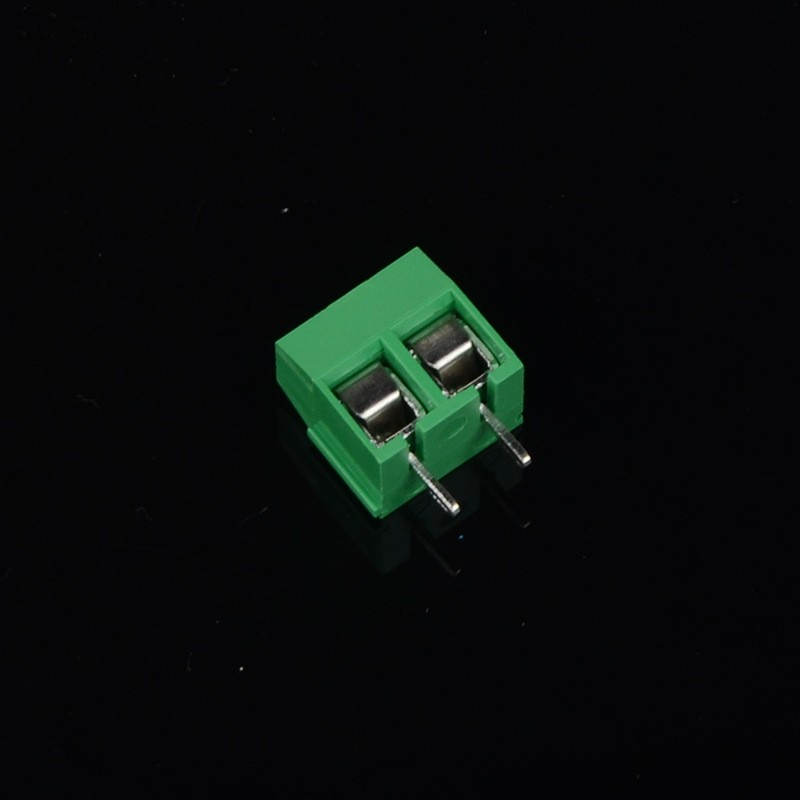

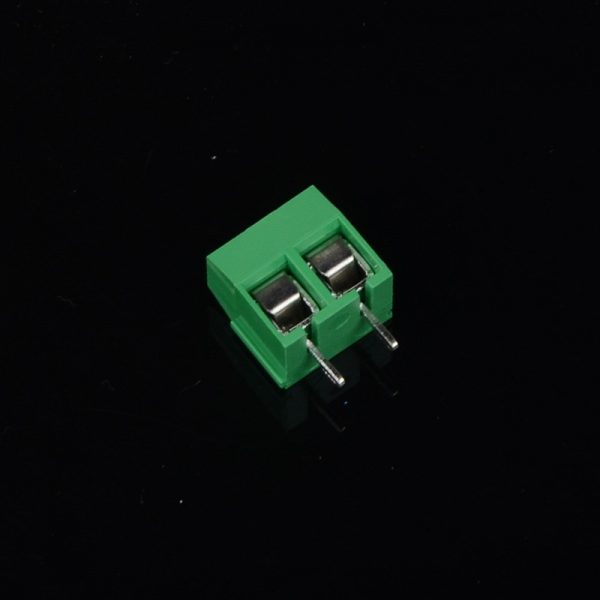

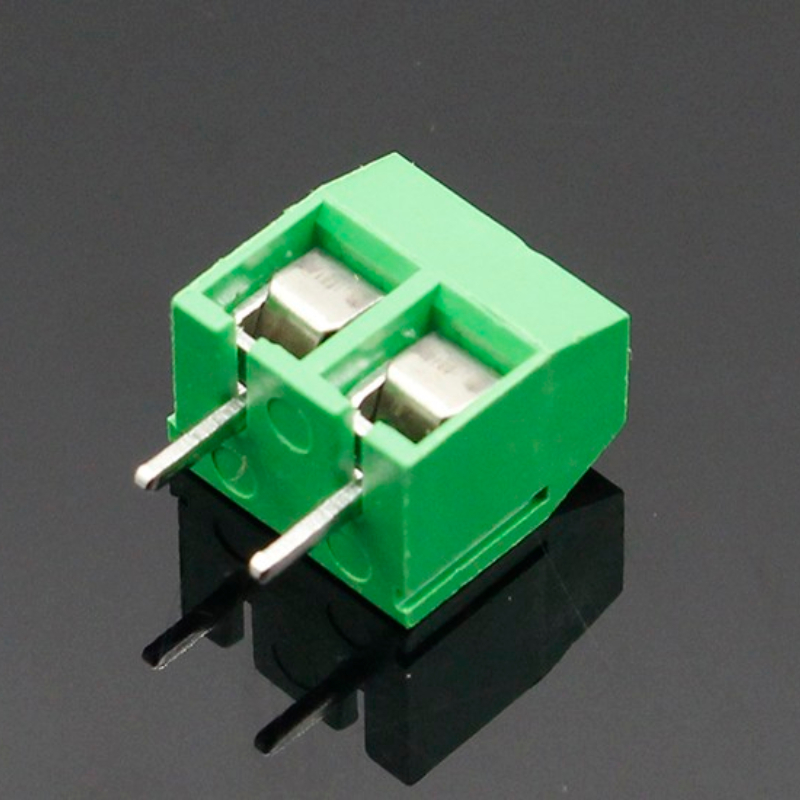

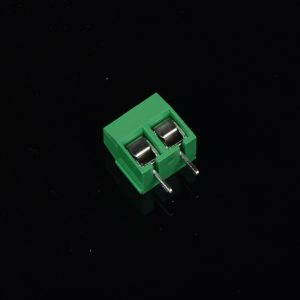

2pin Straight Pin Screw Terminal Block

SKU: FA4097
Part Number:
Brand:
Category:
Tag:

$0.03

0+$0.03

20000 in stock

SHARE:

Description

Features

BRAND NEW!

Pitch: 3.5mm

Poles:2Pin

Color: Green

Electrical

Rated voltage:300V

Rated current:10A

withstanding voltage: AC 1250V/1Min

Wire range:24-18A WG

Mechanical

Temperature range:-40℃ ~ +105℃

MAX soldering:+250℃,5sec

Torque:0.2Nm(1.7 Ib.in)

Withstand length:5-6mm

Material

Housing:PA66. UL94 V-0

Screw:M2.5 Steel Zinc plated

Wire guard: phosphor bronze、Ni plated or stainless steel

Pin header: Brass/Tin plated

Additional information

Weight 0.010 kg
Pitch

3.5mm
Poles

2Pin
Color

Green
Rated voltage

300V
Rated current

10A
Withstanding voltage

AC 1250V/1Min
Wire range

24-18A WG
Temperature range

-40℃ ~ +105℃
MAX soldering

+250℃,5sec
Torque

0.2Nm(1.7 Ib.in)
Withstand length

5-6mm

Reviews

There are no reviews yet.
