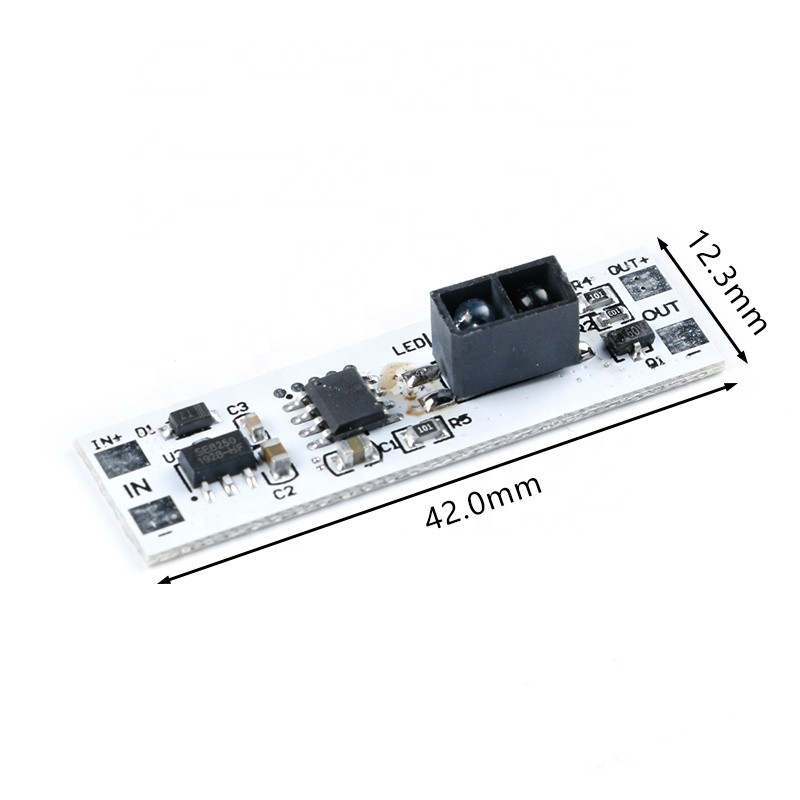

42mm one function Non Touch IR Infrared LED Light Short Distance Scan Sweep Hand Sensor Switch Module

Description

Product introduction

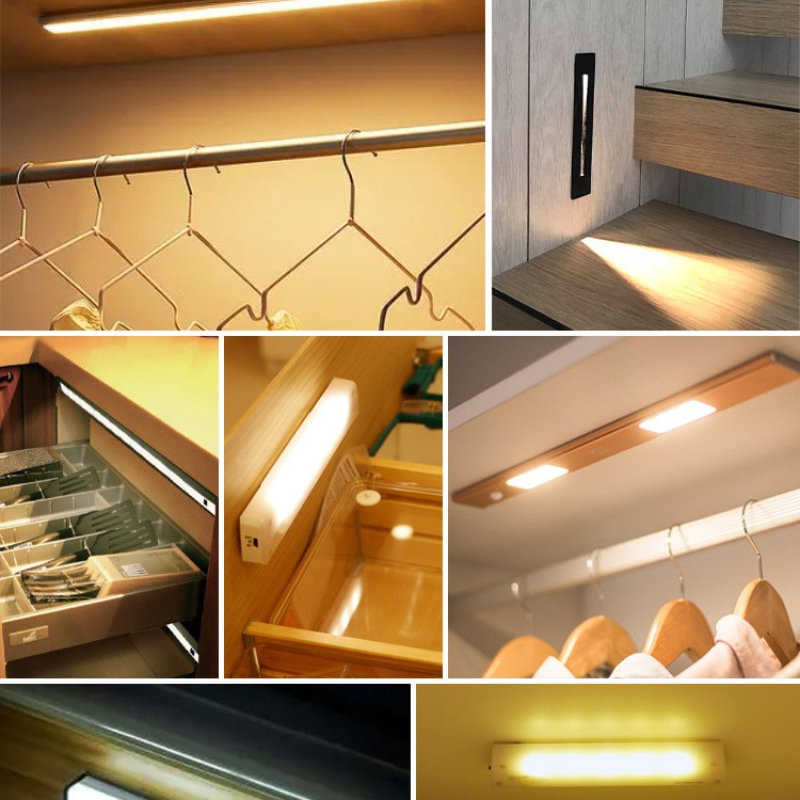

Hand scan sensor switch, used for non-contact hand scan control of LED lights, hand scan distance up to 30~80mm, infrared mode is used to block the sensor

Product parameters

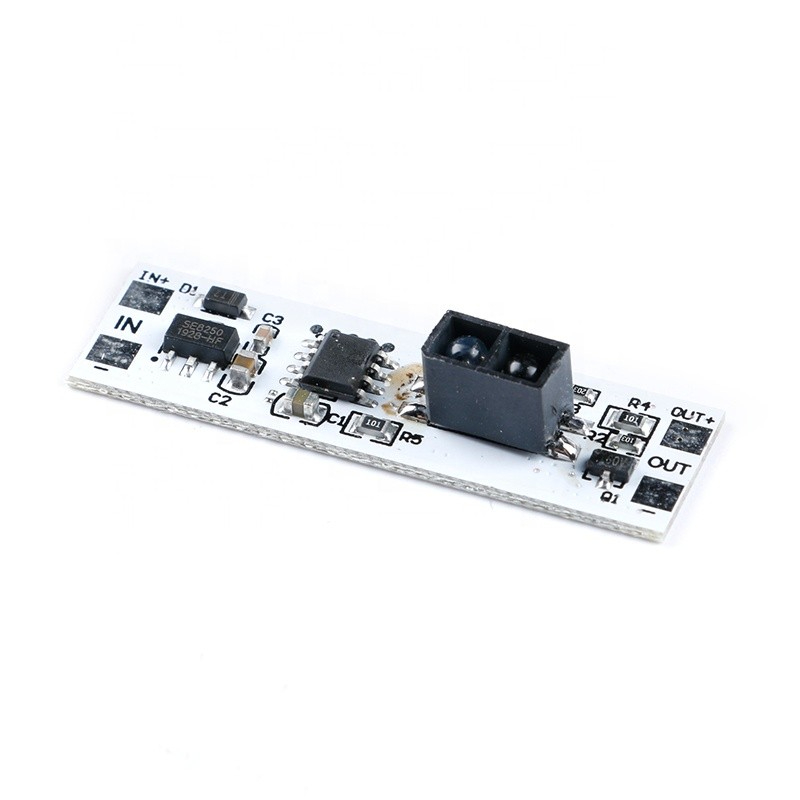

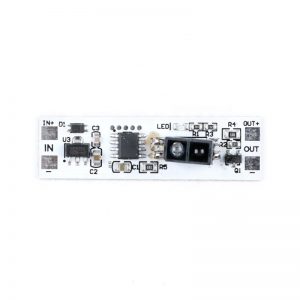

Name: Hand scan sensor switch module
Working voltage: input: 5V-24V output: equal to the input voltage
Output form: switch + indicator light

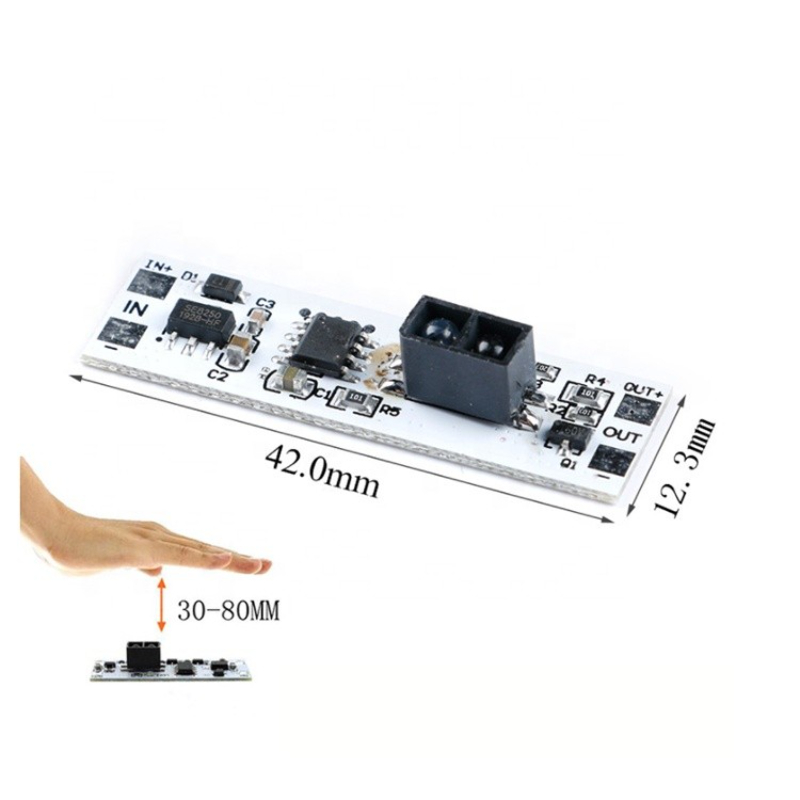

Sensing range: 30-80mm
Induction principle: infrared
Load power: 60W (MAX)

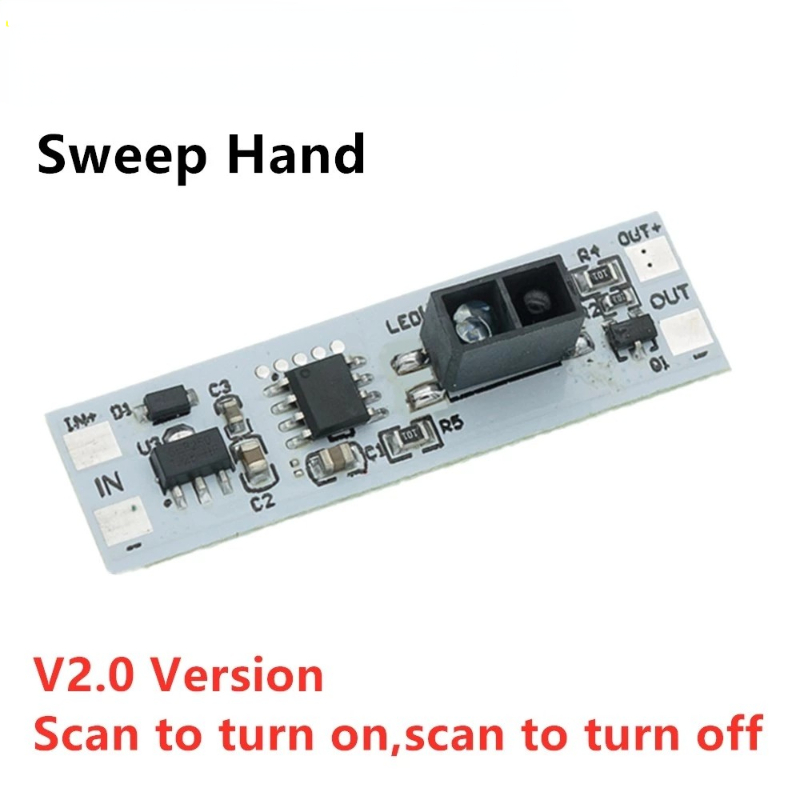

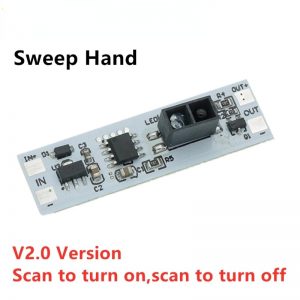

Delay off time: No, scan and turn on/off
Scope of application: DC constant voltage
Load current: resistive 3A
Standby current: 10-15mA VIN: 5-24V

Note: The controller is only used for the switch control of LED lights, and cannot be used with inductive loads (such as inductors, motors, relays, etc.)
