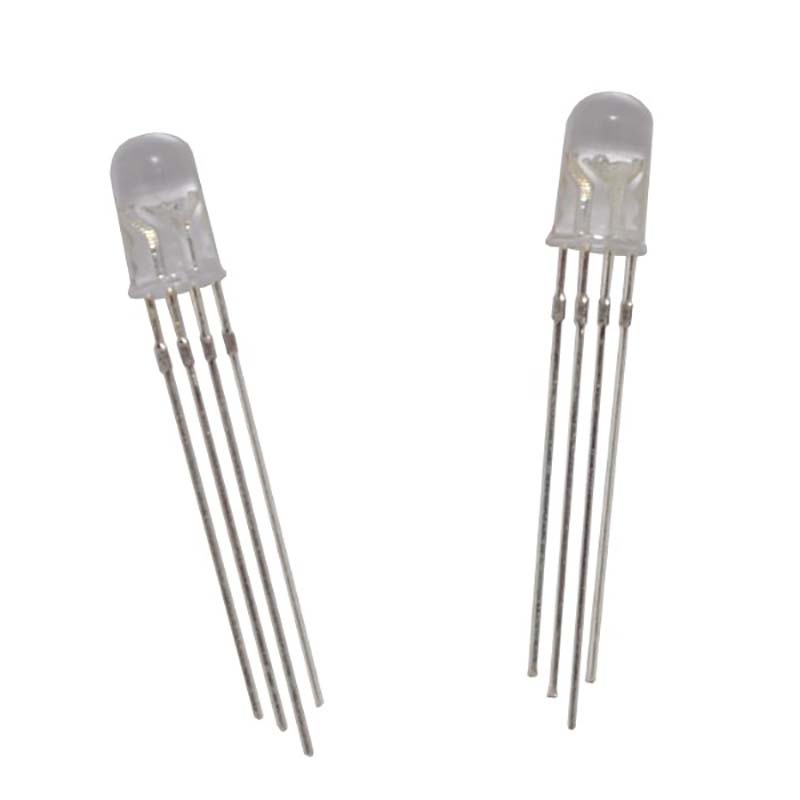

5mm 4pin RGB Tri-Color Common Anode LED light RGB（1 pcs）

Description

Description

Lens Color : Water Clear
Size: 5mm

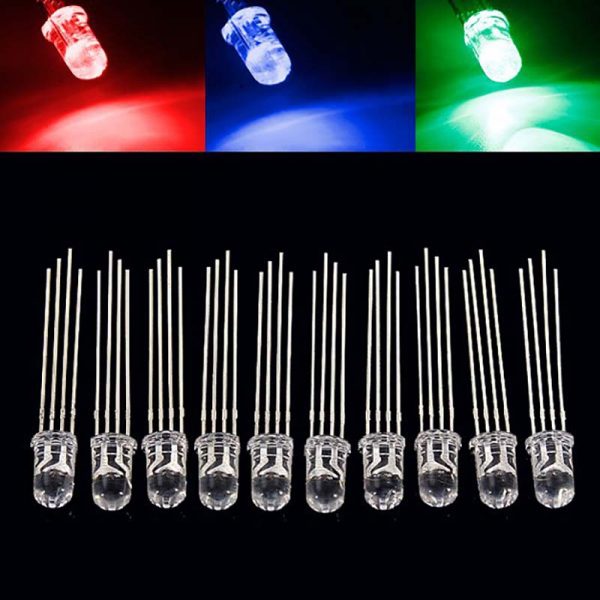

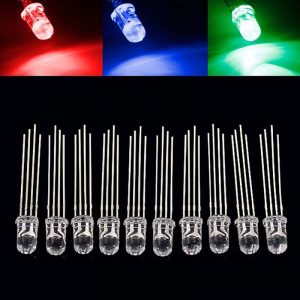

Emitted Colour : Red / Green / Blue
Pins sequence: RED/Common Anode/Green/Blue
Luminous Intensity: 4000/8000/5000mcd
Forward Voltage (V) : 2.1~3.4
View Angle: About 25 degree.

Forward
Voltage(V)Dominant
wavelength(mm)KLuMen(LM)Reverse
current(uA)Power
Angle (deg)If=20mAIf=20mAIf=20mAVr=5V
MinTypMinTypMinTypMax
Red2.12.4620630300040001020-25Green3.03.4520530600080001020-25Blue3.03.4460465400050001020-25
Please test to add current limiting resistor, it will be very easy to burn out the LED resistance of a few hundred to 1000ohm.
R: wavelength 630-640nm Brightness 1000-1200mcd Voltage 1.8-2.0V
G: wavelength 515-512nm Brightness 3000-5000mcd Voltage 3.2-3.4V
B: wavelength 465-475nm Brightness 2000-3000mcd Voltage 3.2-3.4V
