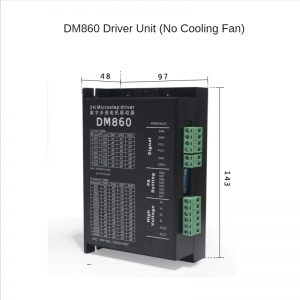

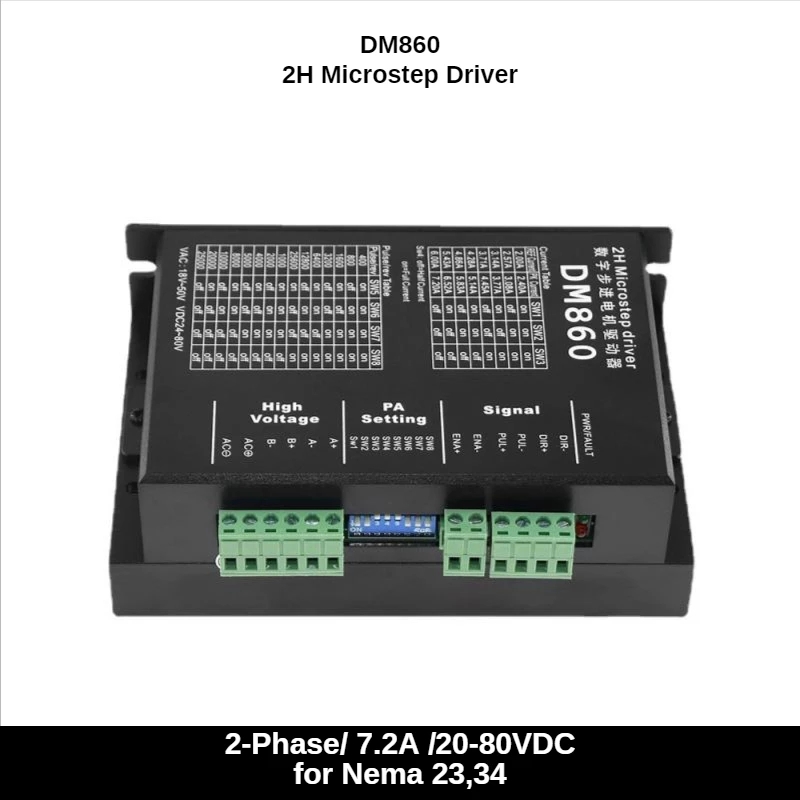

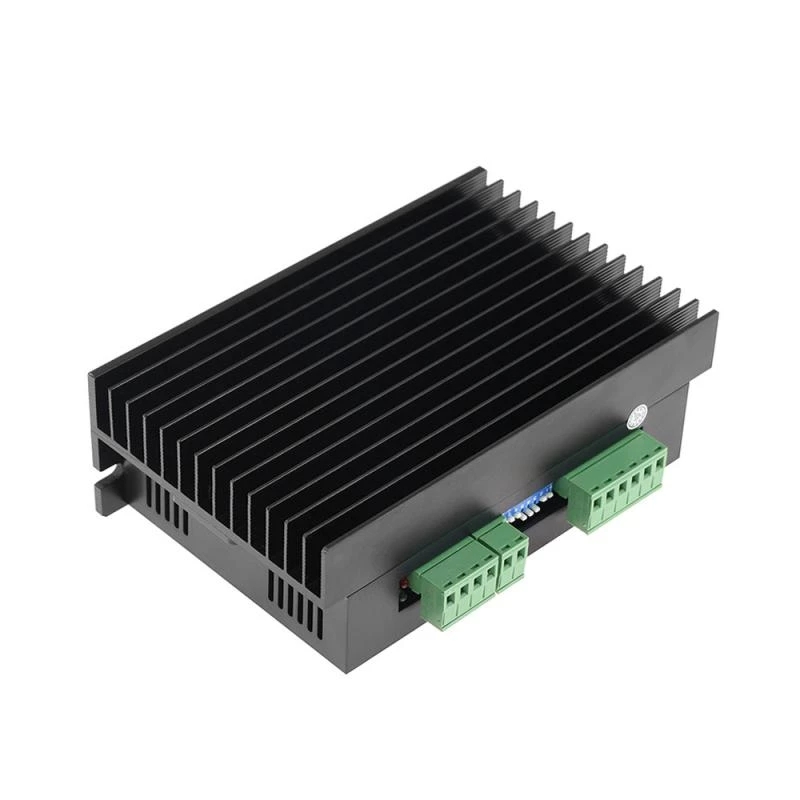

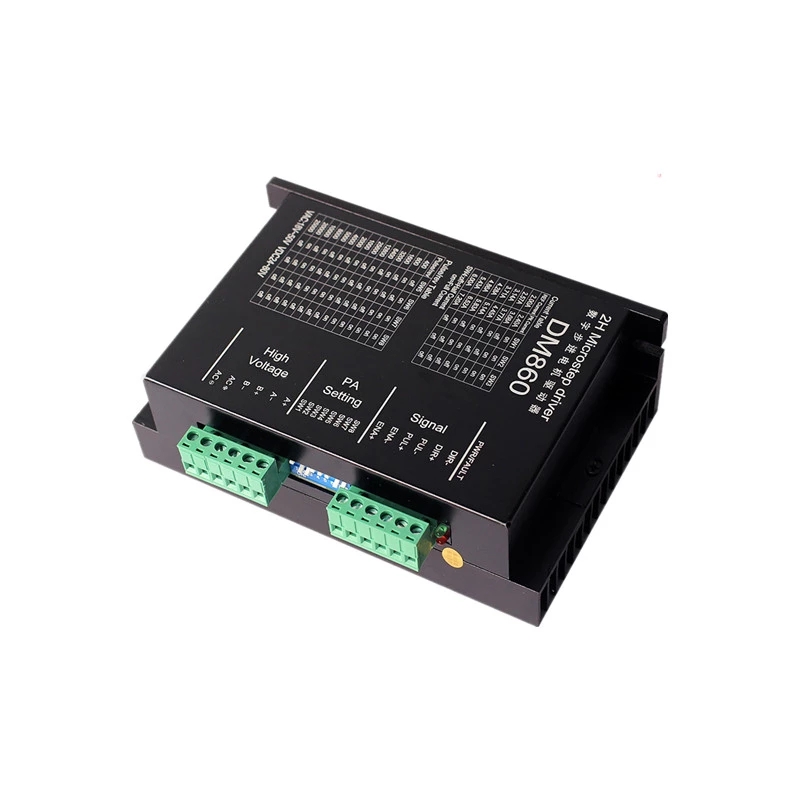

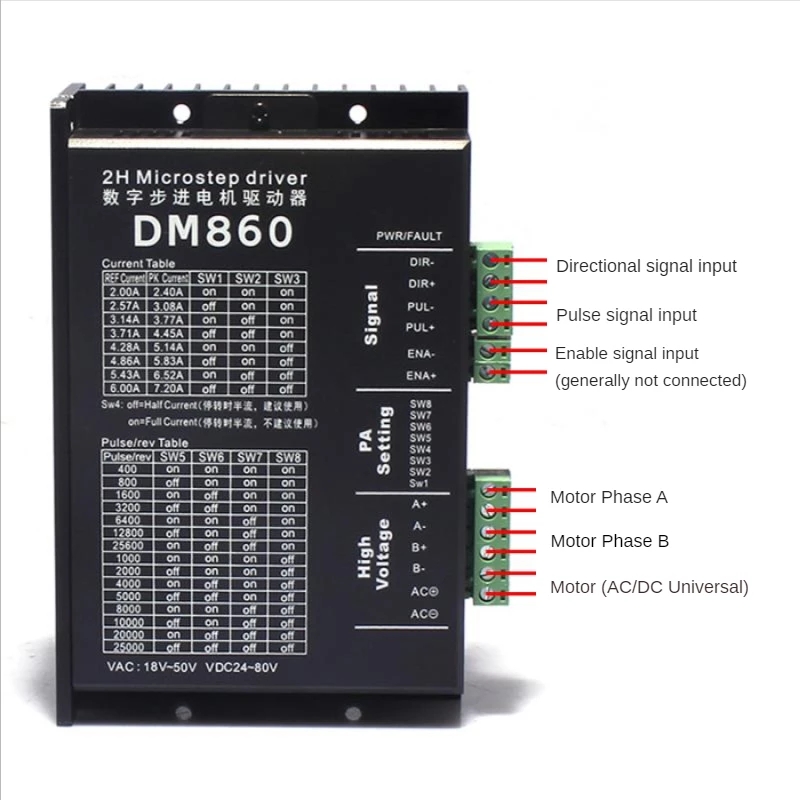

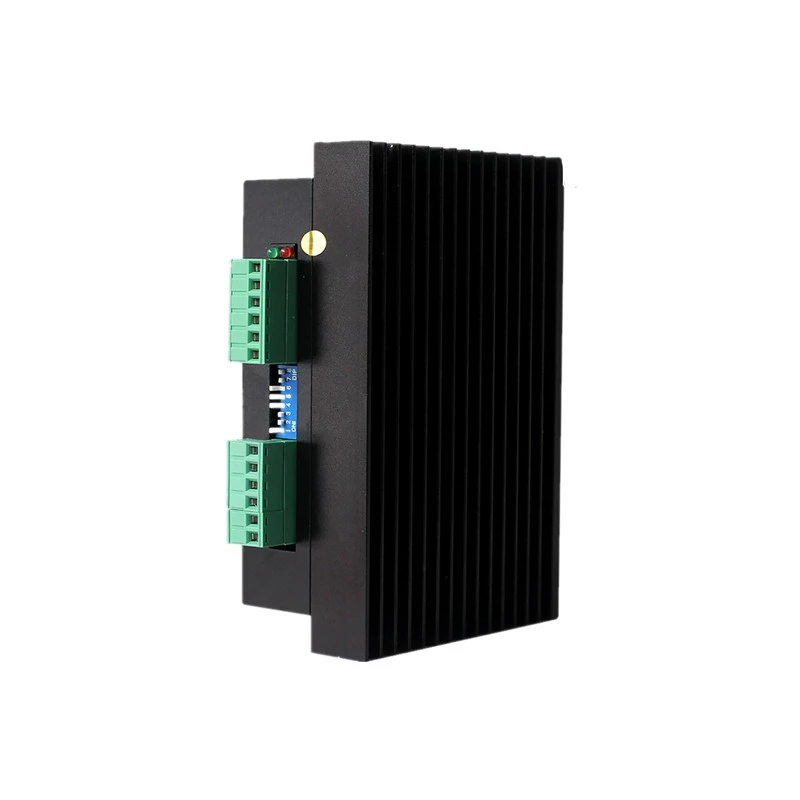

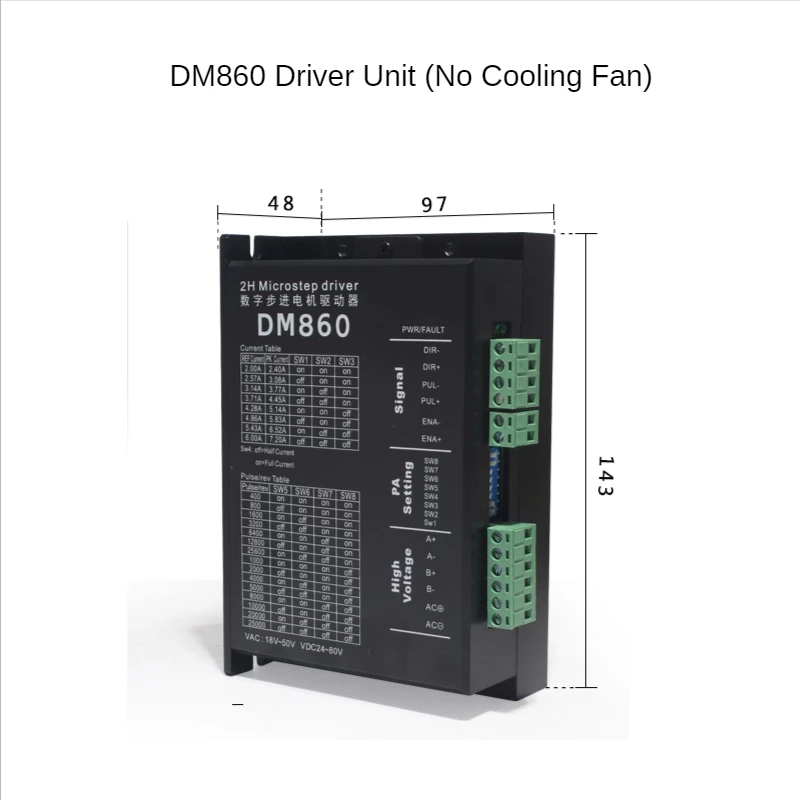

86 stepper motor driver DM860 DSP digital DM860H driver board

Description

Features

• 1. 20V-80V DC / 18V-50V AC power supply;
• 2. H bridge constant phase bipolar flow drive;
• 3. Eight kinds of output currents can be selected with current up to 7.2A.
• 4. Fifteen subdivision modes that can be subdivided to 128 are optional.
• 5. High-speed photoelectric isolation of input signal;
• 6. Standard single-push interface;
• 7. Off-line maintenance function;
• 8. Semi-closed chassis can adapt to harsher environment.
• 9. Provides energy-saving semi-automatic current lock function;
• 10. Built-in temperature protection and overcurrent protection.
• 11.550G
