FT231XQ usb to TTL and USB to UART serial port Micro usb interface

Description

Description

The module adopts FT231 chip, which realizes the function of USB to UART, and has complete modem control. The module has a green LED receiving data indicator , a red LED sending data indicator, a Micro USB port for easy connection to a computer, and a 3.3V power output pin.

Parameters

The chip is FT231, and a virtual serial port is generated after installing the driver;
Power supply: Power supply through Micro USB 5V;
Onboard transceiver indicator: The transceiver indicator will flash when communicating;

Pins

TX: sender, generally expressed as its own sender, normal communication must be connected to the RX of another device;
RX: Receiver, generally expressed as its own receiver, normal communication must be connected to the TX of another device;
RST: module reset pin;
GND: module ground;
3.3V: 3.3V power output;

Front view

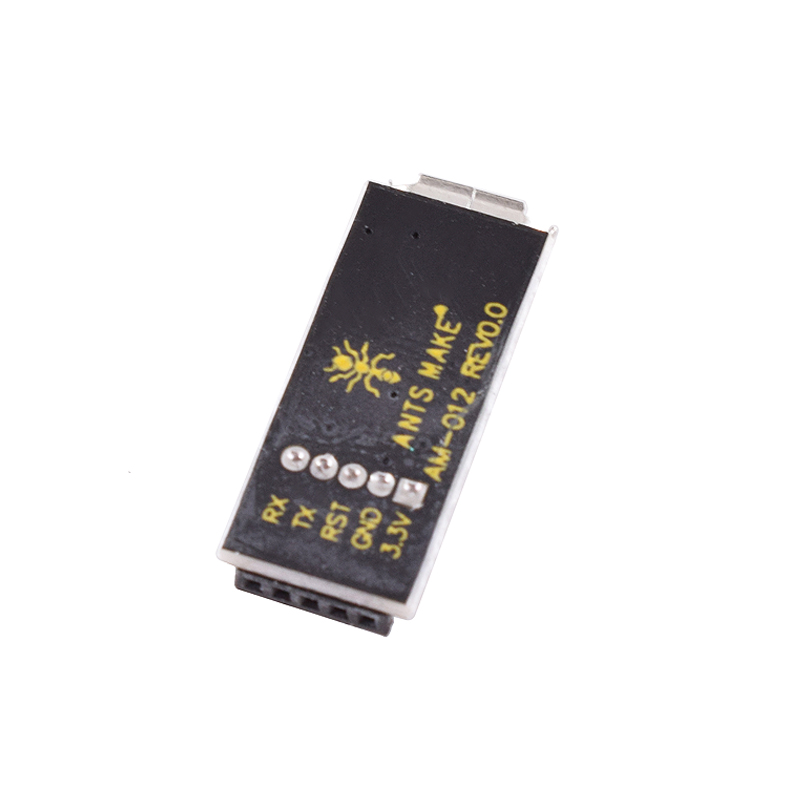

Reverse view
