Description
Product details
| Material | Ceramic |
| Color | Blue |

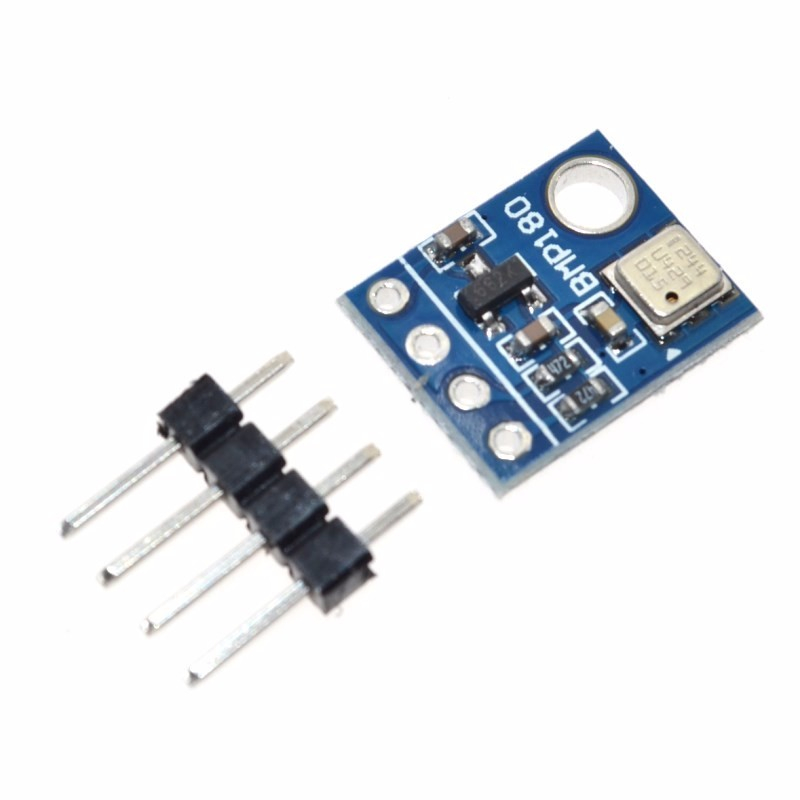

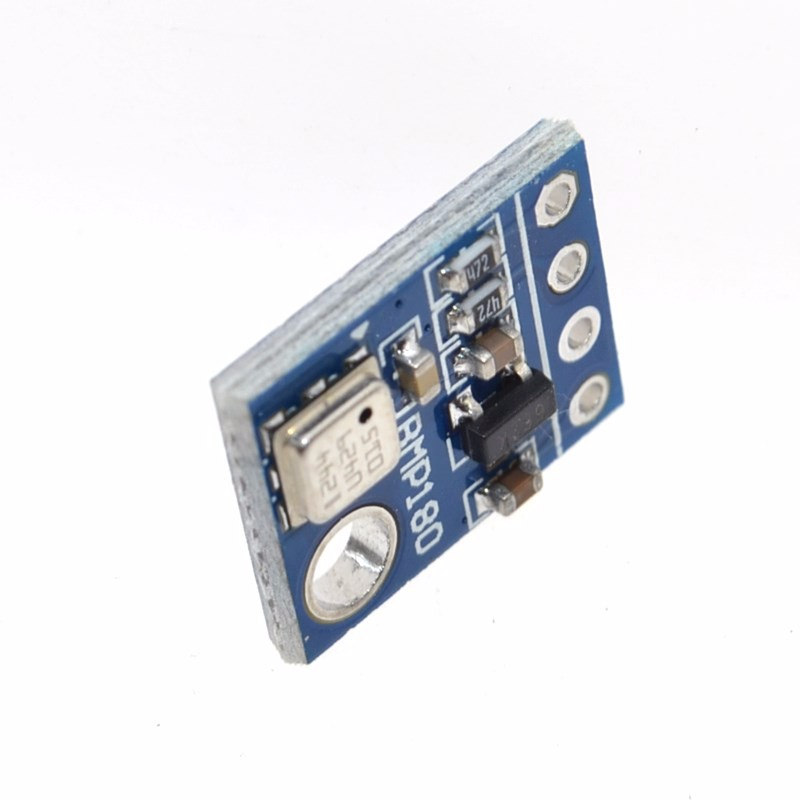

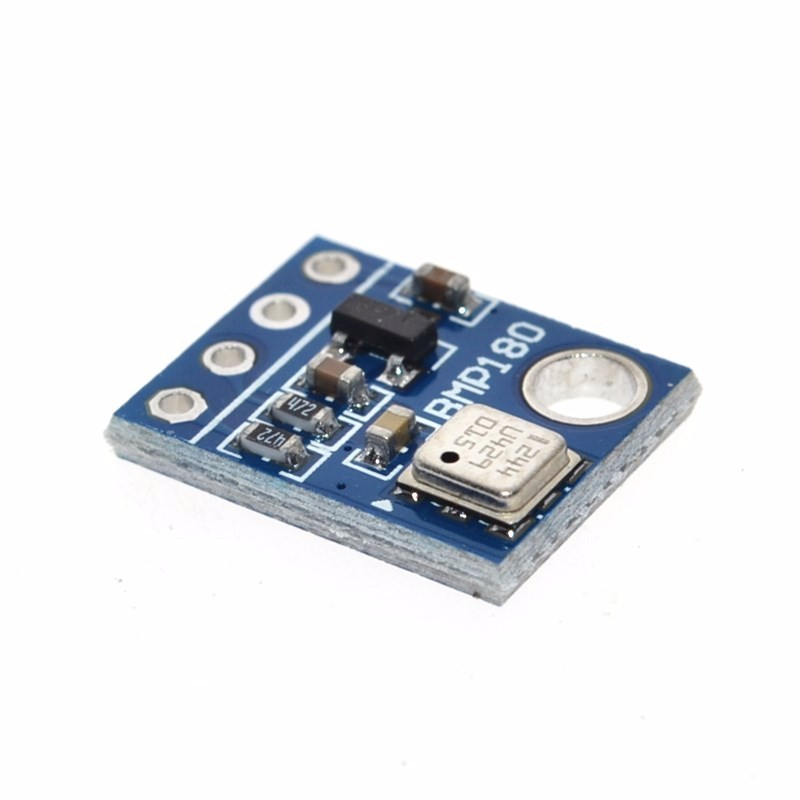

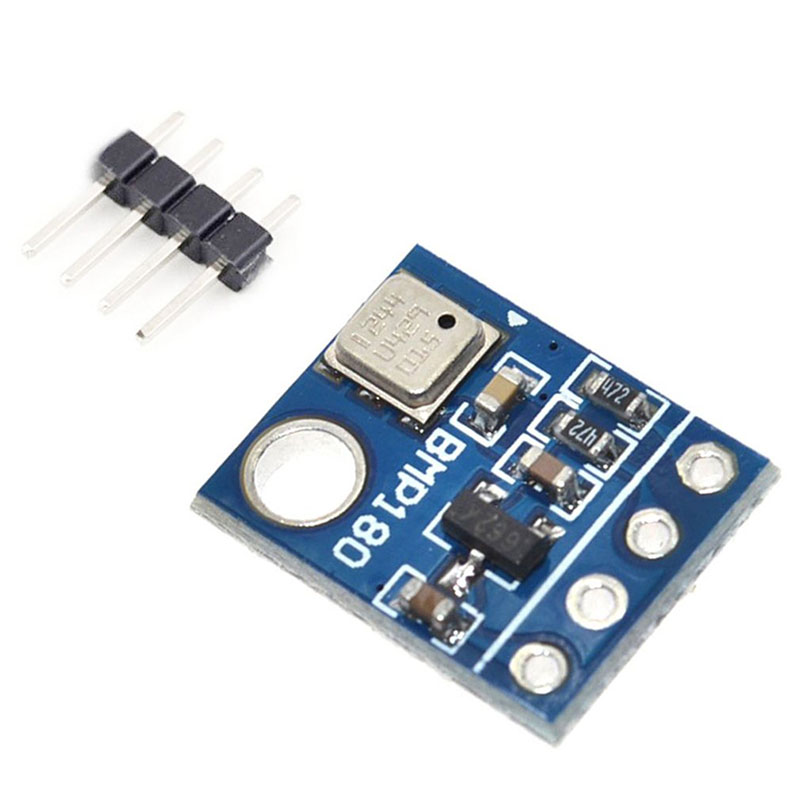

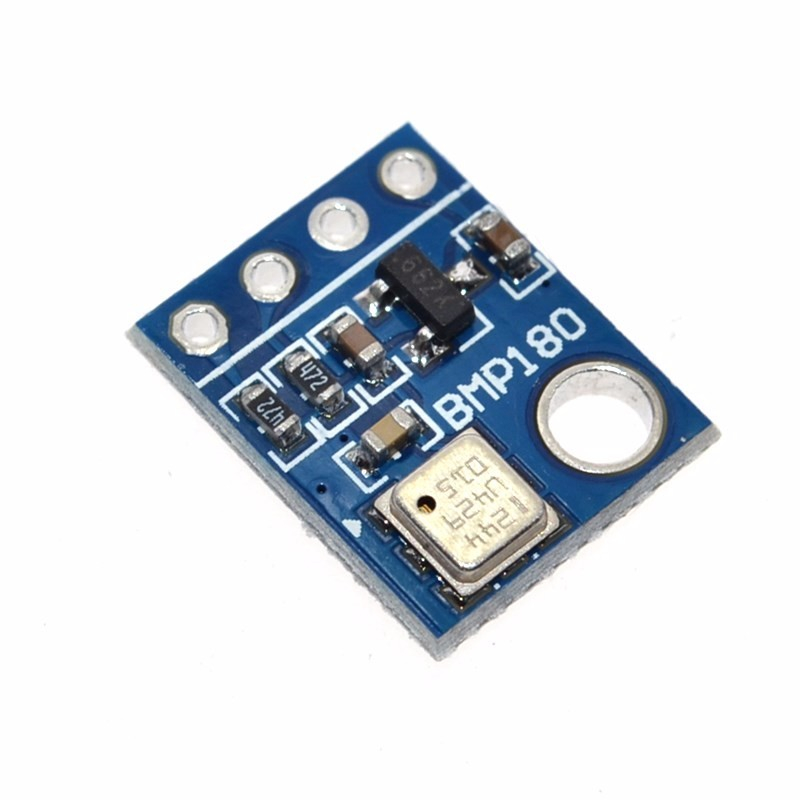

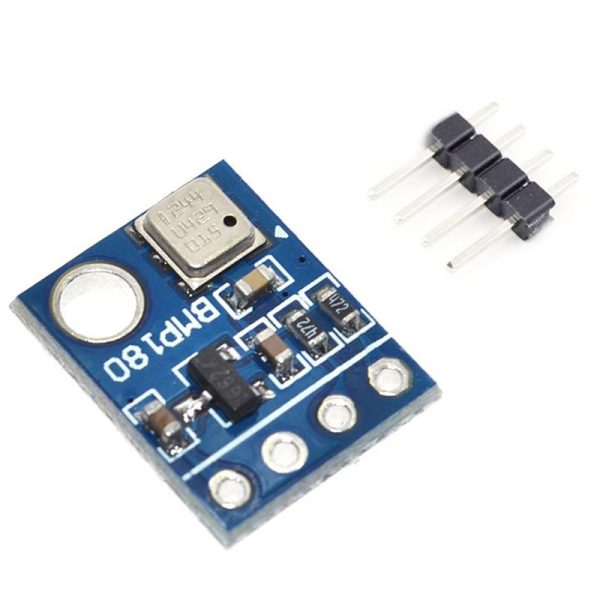

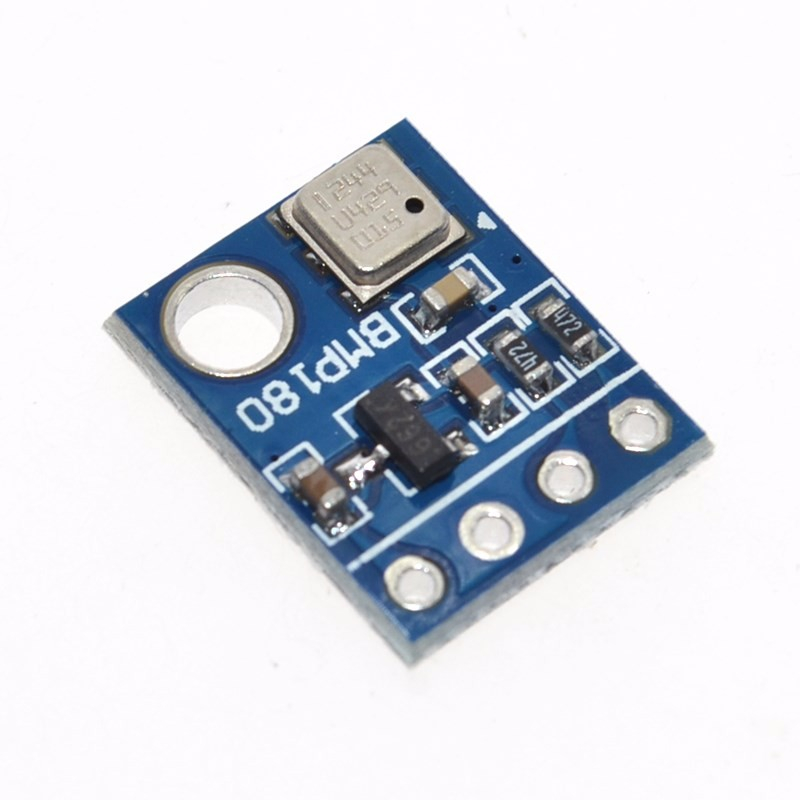

- BMP180 is a high-precision, small size, ultra-low power pressure sensor that can be used in mobile devices
- Its performance excellence, the absolute accuracy of the lowest can reach 0.03hPa, and low power consumption, only 3μA
- BMP180 powerful 8-pin ceramic leadless chip carrier (LCC) ultra-thin package, you can directly through the I2C bus connected with a variety of microprocessors
- Pressure range: 300 ~ 1100hPa (9000 meters above sea level ~ -500 meters)
- Low power consumption: 5μA in standard mode
Introduction
Measuring the absolute pressure of the enviroment using a digital barometer such as this has some interesting applications. By converting the pressure measured into altitude, you have a reliable sensor for determining the height of your robot, plane or projectile!
Using a sensor as capable as the BMP180 you can achieve accurary of 1m, with noise of only 17cm in ultra high resolution noise. The device will operate at only 0.3uA meaning low current draw for battery powered applications.

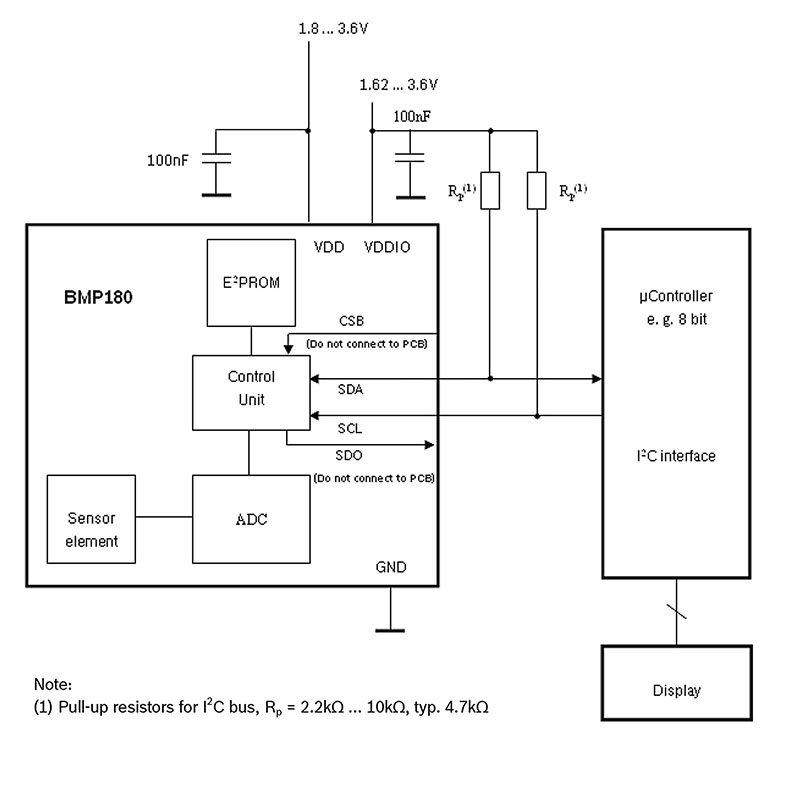

The BMP180 comes fully calibrated and ready to use. As the device operates over I2C we’ve added optional I2C pull ups that can be enabled using the PU (pull up) jumper on the board for your convenience and ease during breadboarding.
Using I2C, the device provides pressure and temperature as 16bit values, which are used along with calibration data within the device are used to provide a temperature compensated altitude calculation.
Features
1.8V to 3.6V Supply Voltage
Low power consumption – 0.5uA at 1Hz

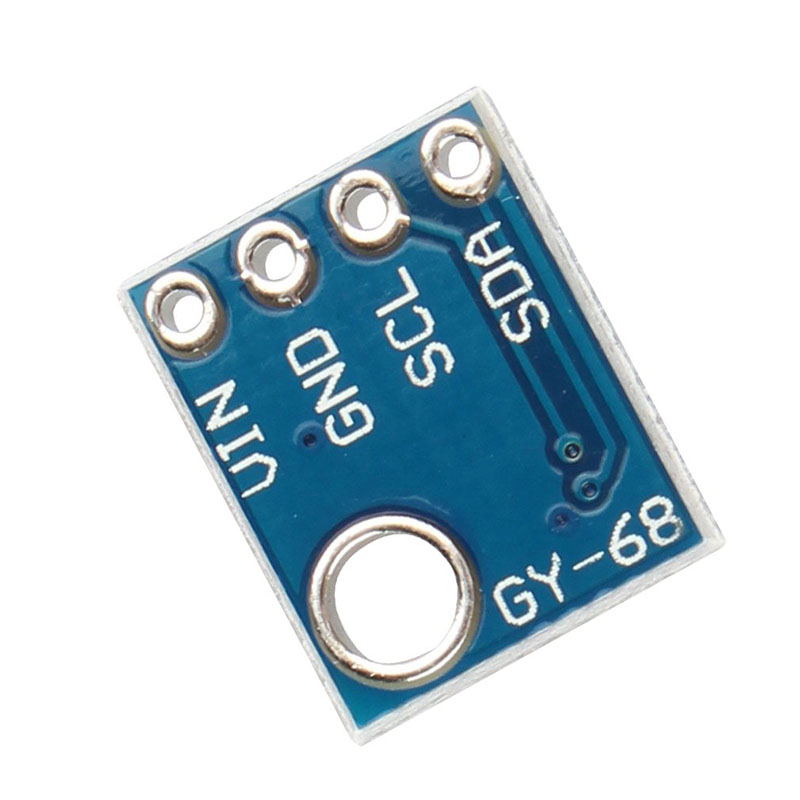

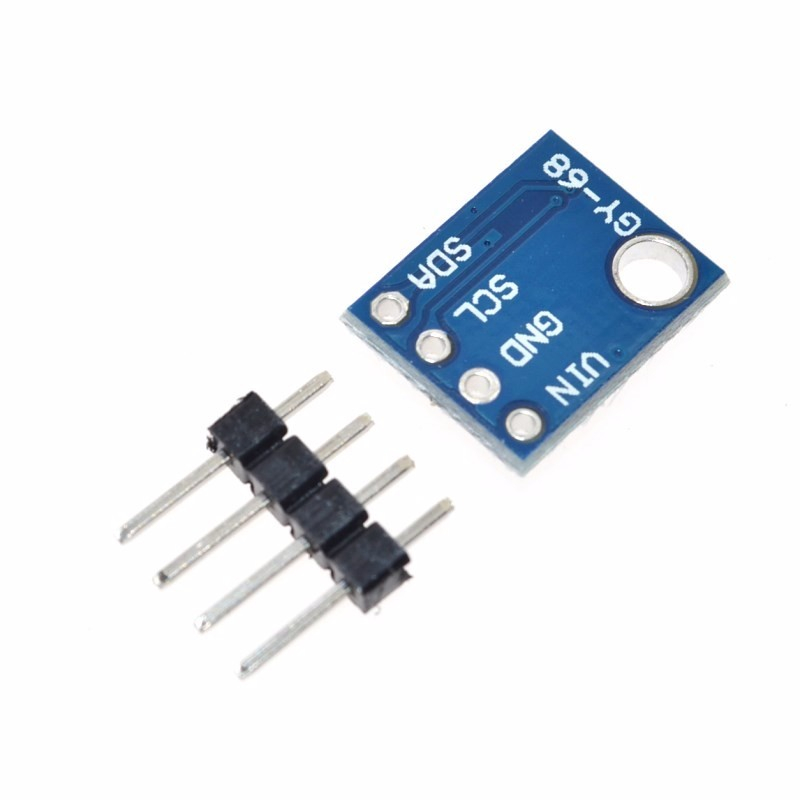

I2C interface
Max I2C Speed: 3.5Mhz
Very low noise – up to 0.02hPa (17cm)
Full calibrated
Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
