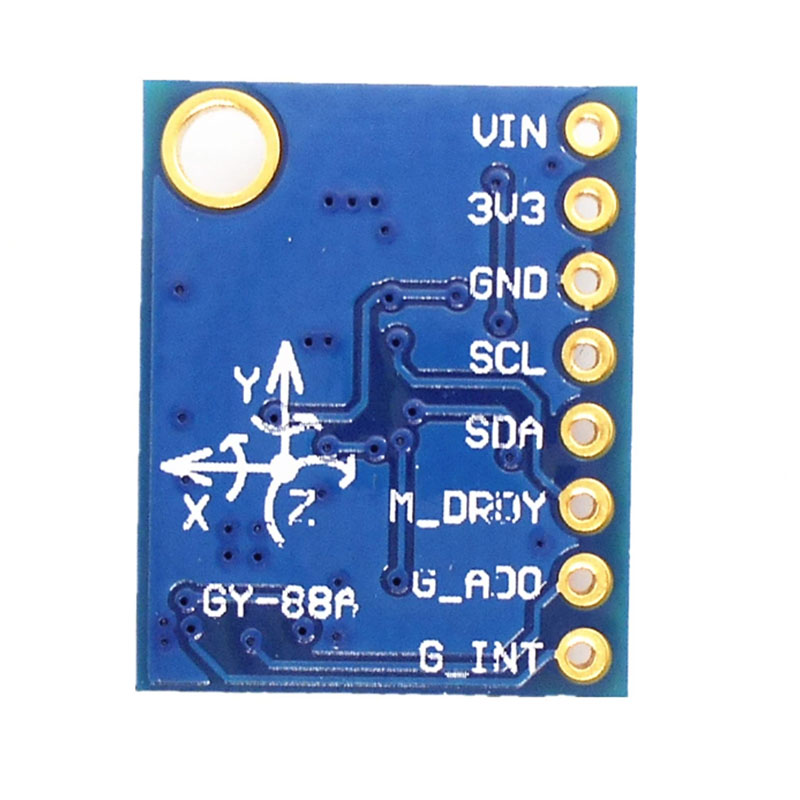

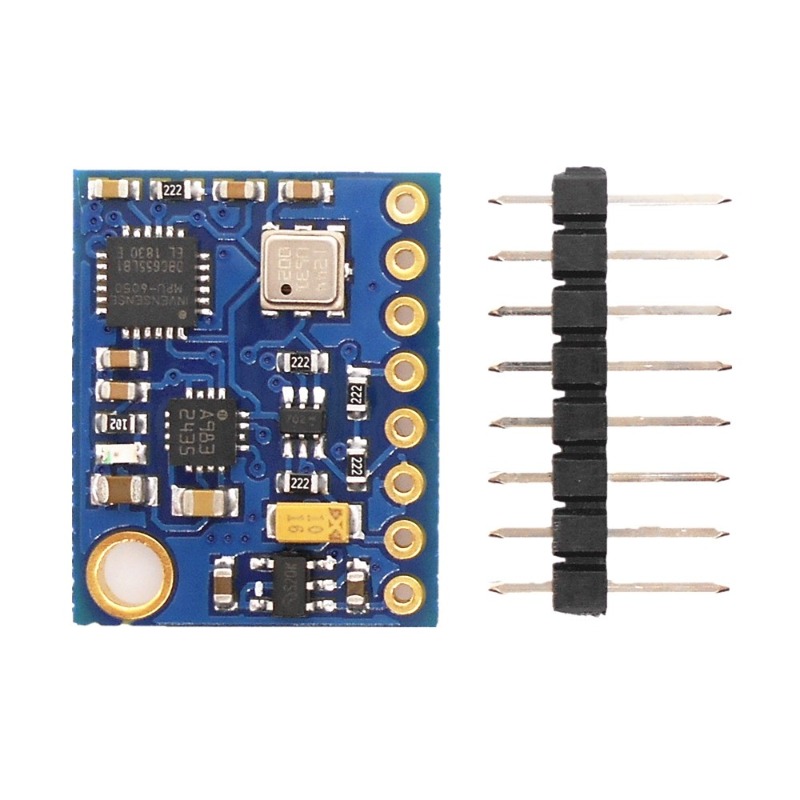

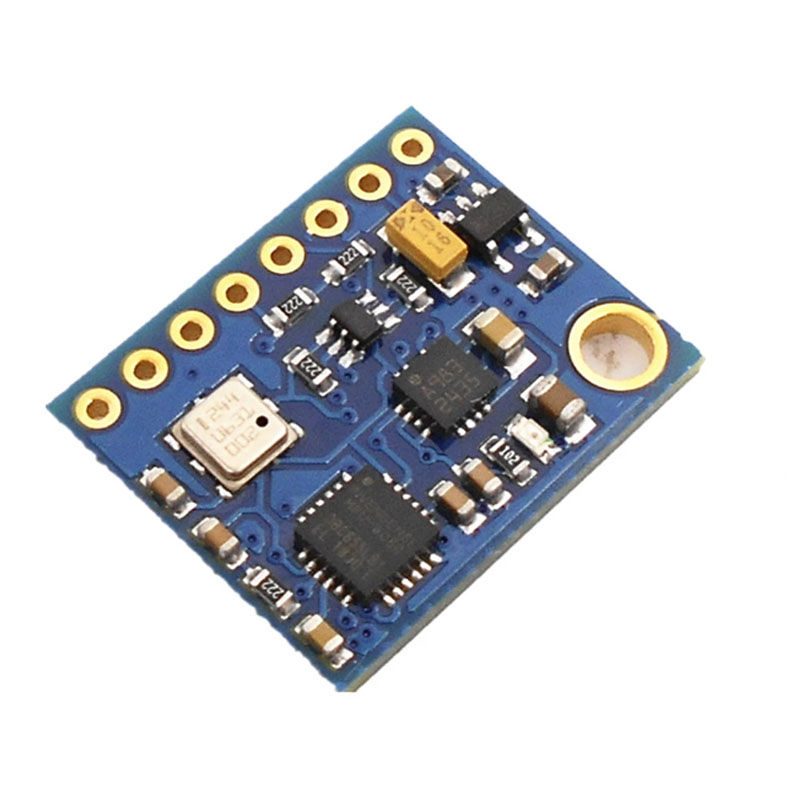

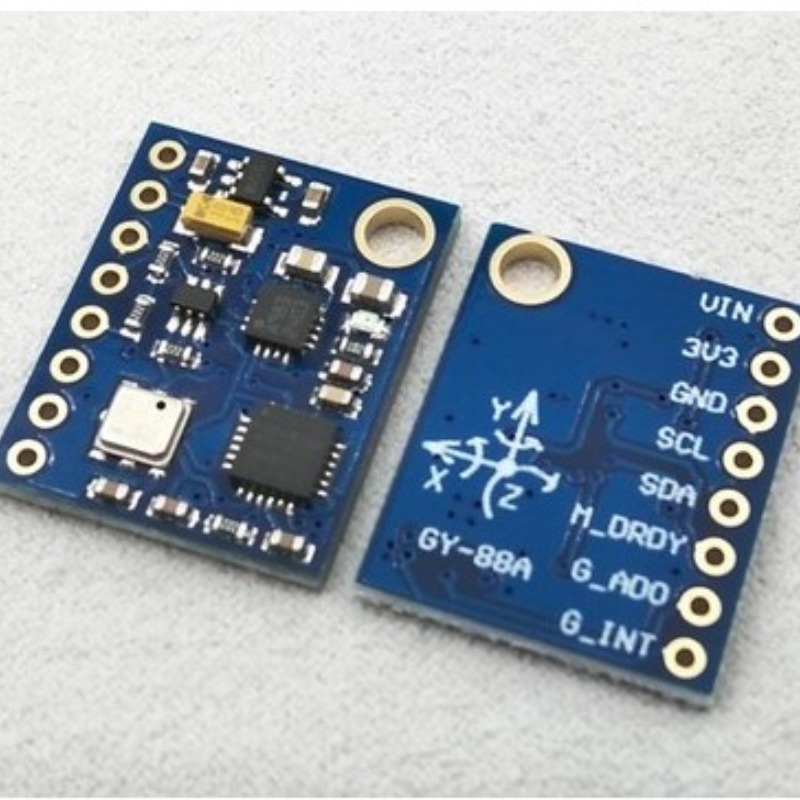

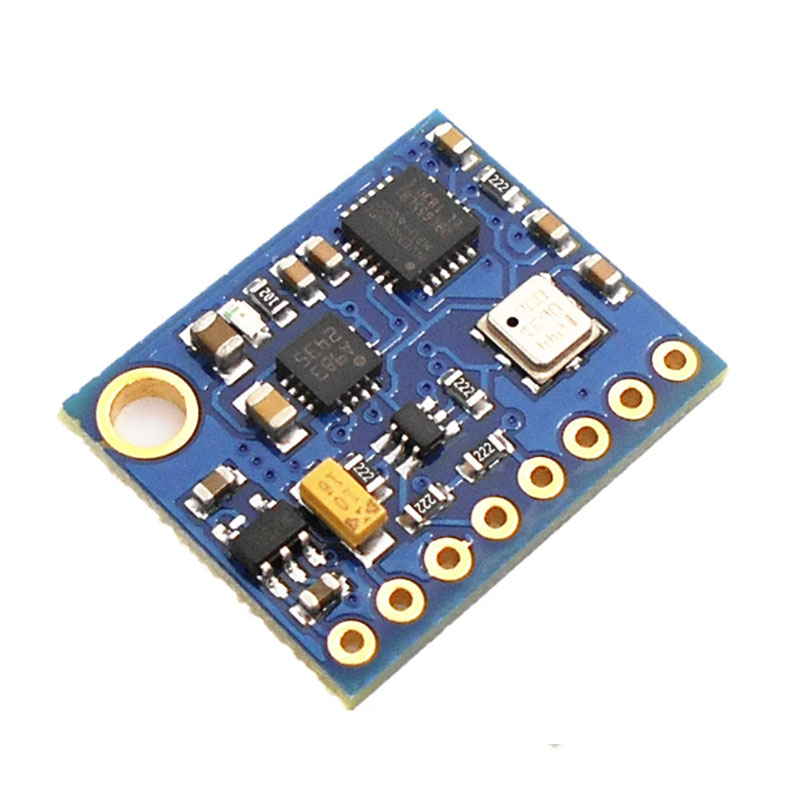

GY-88A MPU-6050 HMC5983L BMP180 10DOF

The original GY-88 has been discontinued New: GY-88A GY-88A vs. GY-88 The same size, the same interface, the software does not need to be modified, the chip is also a new imported original,
Yes, there is no difference between using direct replacement.
The GY-88 chip is :MPU6050+HMC5883+BMP085
The GY-88A chip is : MPU6050+HMC5983+BMP180

10DOF IMU MPU6050 HMC5883L BMP085 Arduino accel gyro baro mag gy-88 uno mega due

10DOF module (triaxial gyro + triaxial acceleration + triaxial magnetic field + pressure)

Using gold sink PCB process

Using the chip: MPU6050+HMC5983L+BMP180

Power supply: 3-5v

Communication method: IIC communication protocol (completely compatible with 3-5v system, including LLC circuit)

Size: 2.2cm*1.7cm

3.3-5v compatible
MPU 6050 Motion Sensor module: 3-axis gyroscope, 3-axis accelerometer
HMC5983L module (three-axis magnetic field module)
BMP180 barometer pressure sensor
Chip: MPU-6050
Power supply: 3v-5V power
Gyroscope range: + 250 500 1000 2000 °/ s
Acceleration range: ± 2 ± 4 ± 8 ± 16 g
HMC5983L: Measuring range: ± 1.3-8 Gauss.
