Description

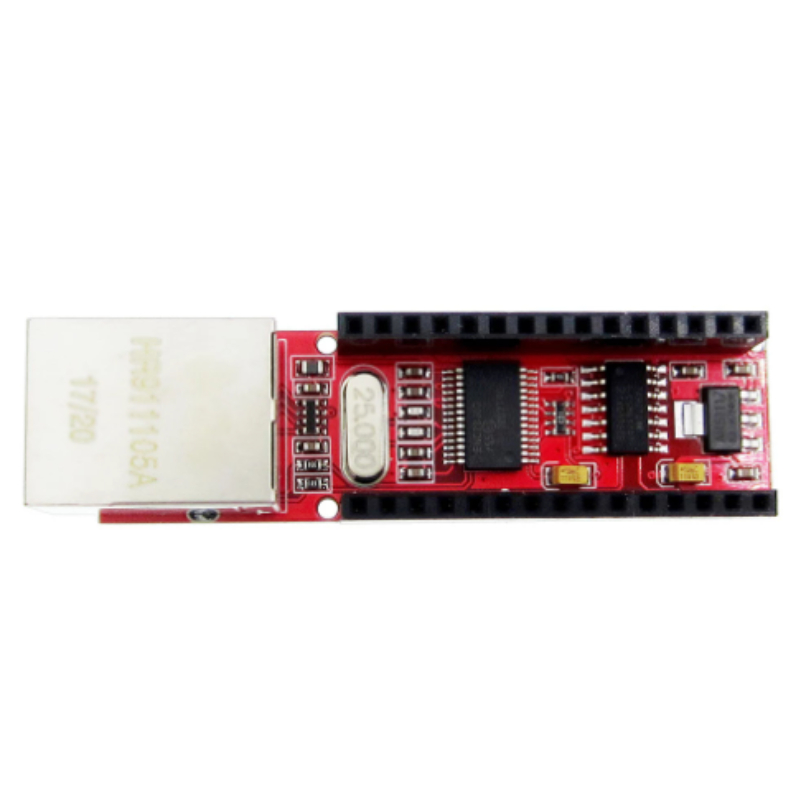

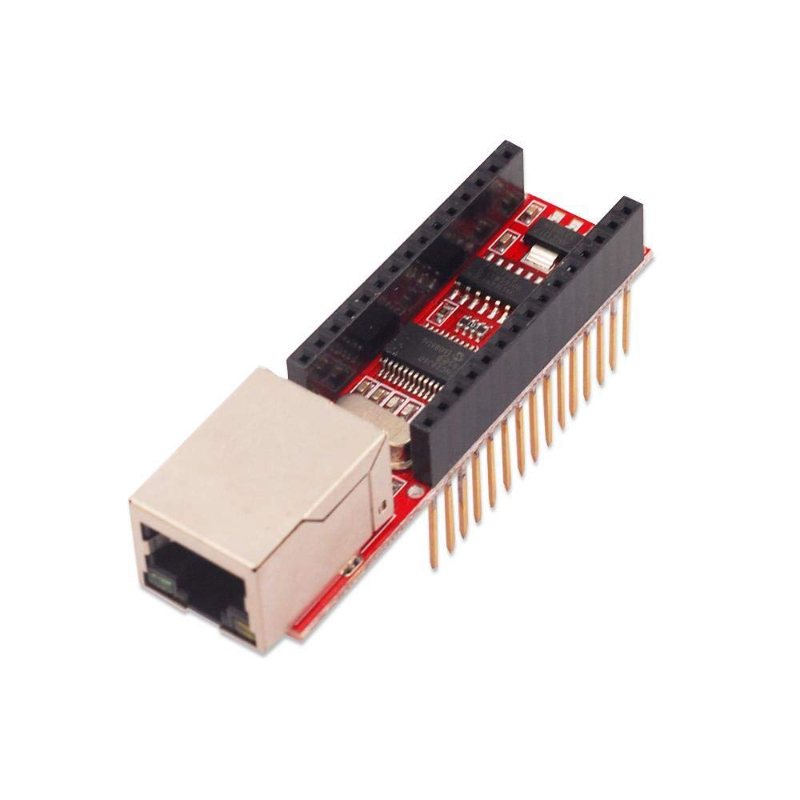

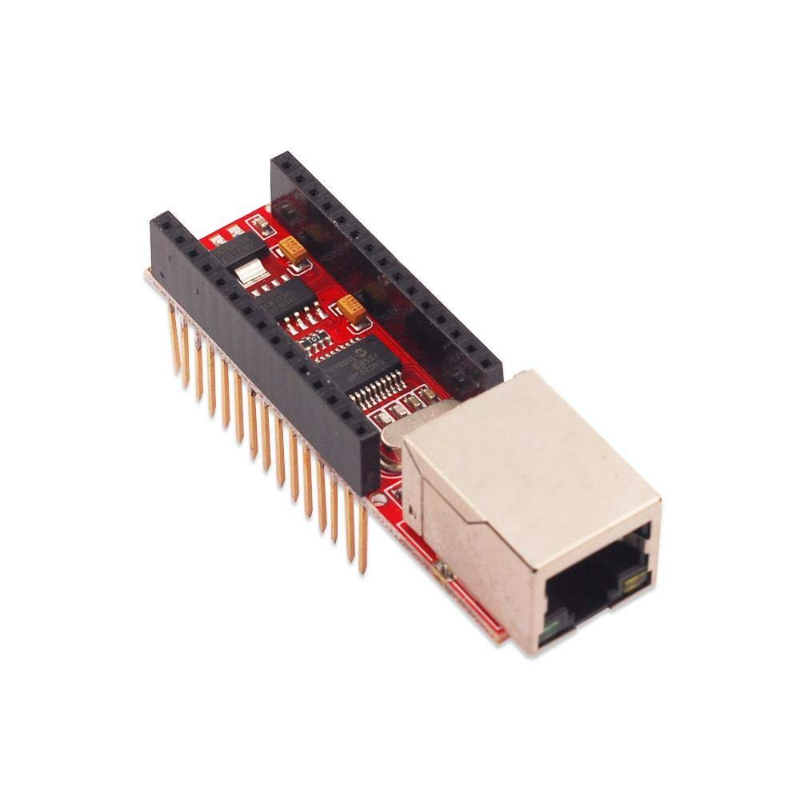

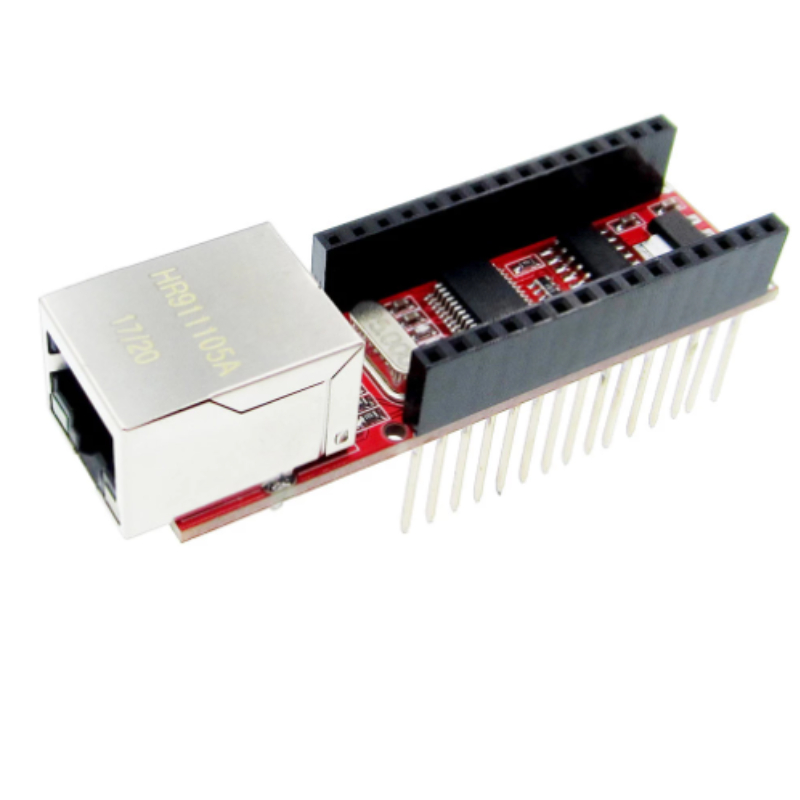

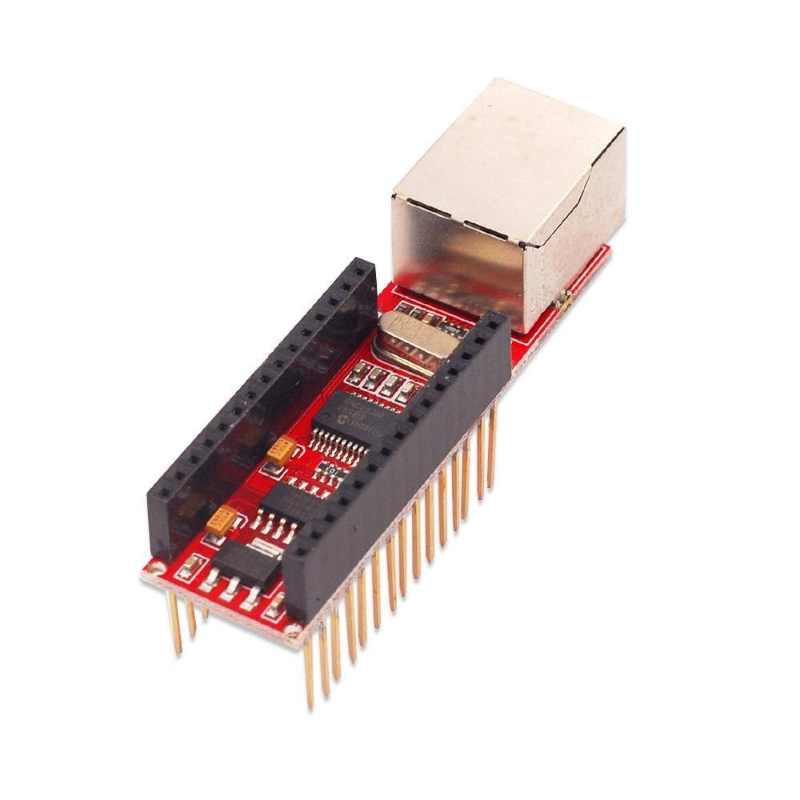

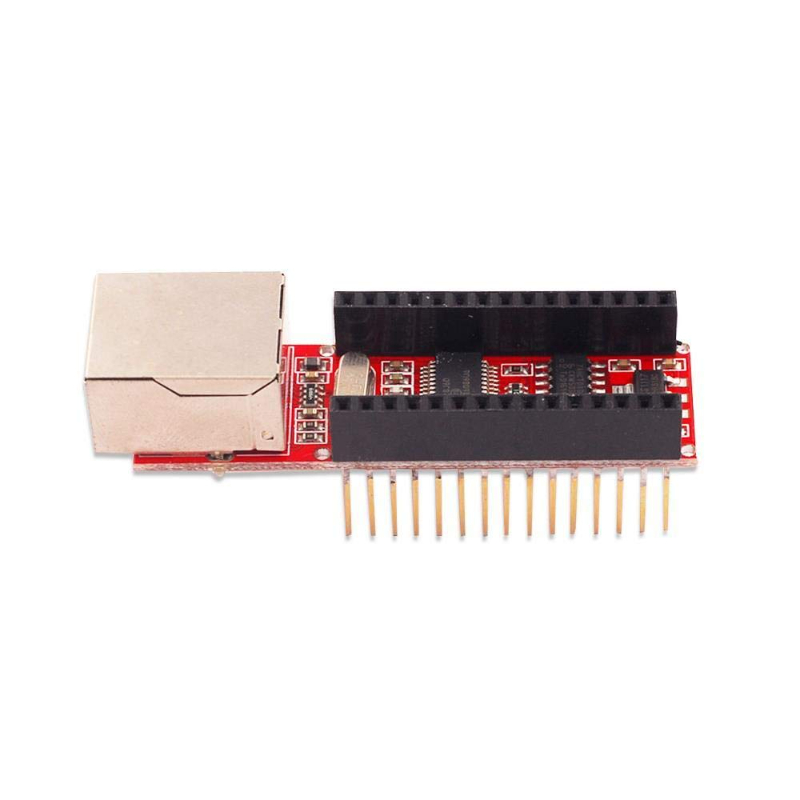

This module allows to connect Arduino Nano microcontroller to Ethernet network. On the board there is RJ-45 Ethernet socket for network cable and soldered goldpin pins necessary to connect it to main board. The module can also be plugged into contact board or combined with other overlays for Arduino Nano to form stacks. Supply voltage of the chip is 3.3V. The product is compatible with 10/100/1000Base-T Networks. The dimensions of the overlay are 67 x 18 x 15 mm.
Ports of Ethernet network module

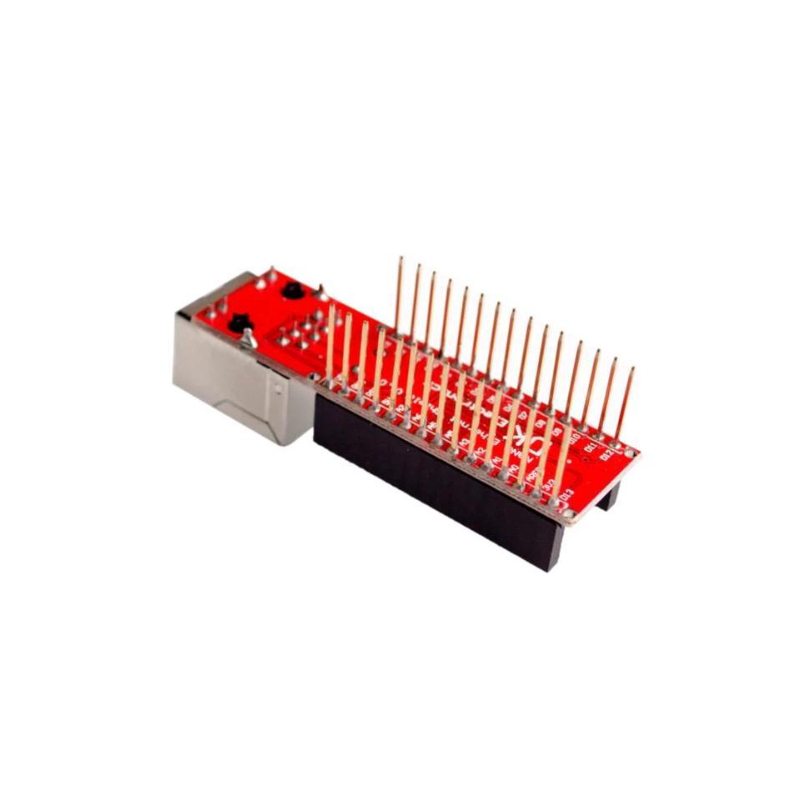

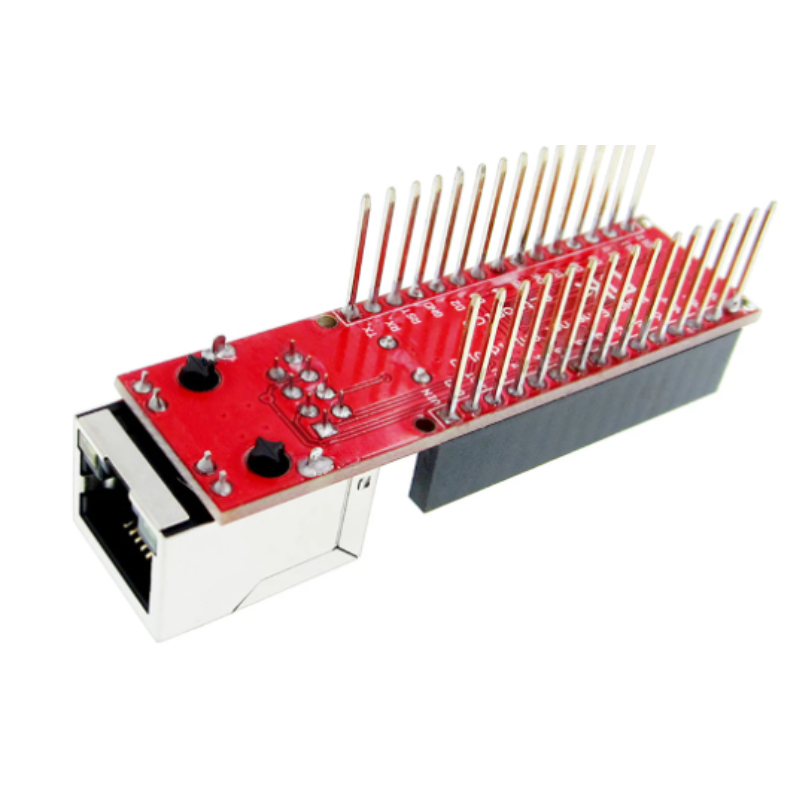

Module has goldpin pins, which allows to connect it to Arduino Nano or dedicated PCB using available wires. Pins are listed on the board.
-
Network module specification
- Compatible with Arduino Nano board
- Microchip ENC28J60
- Compatible with 10/100/1000Base-T Networks
- Supply voltage: 3,3 V
- RJ-45 Ethernet socket
- Chipset ENC28J60
- Dimensions: 67 x 18 x 15 mm
