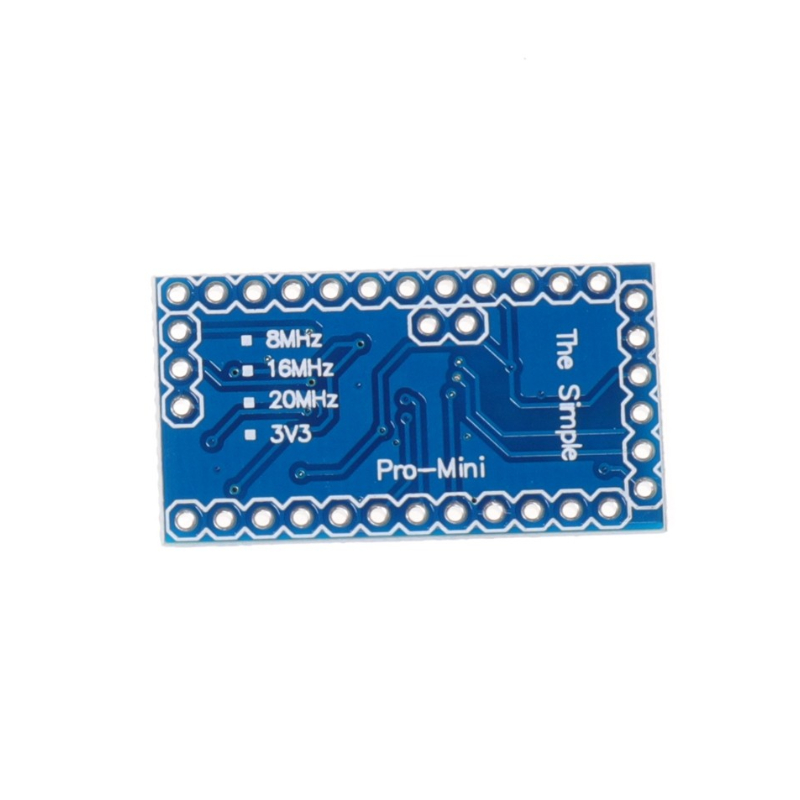

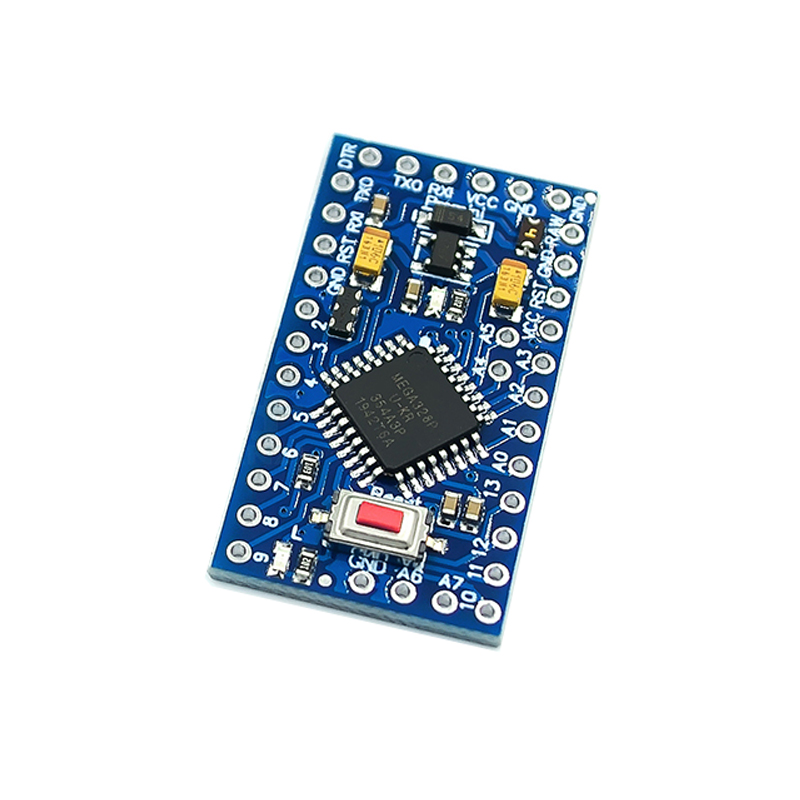

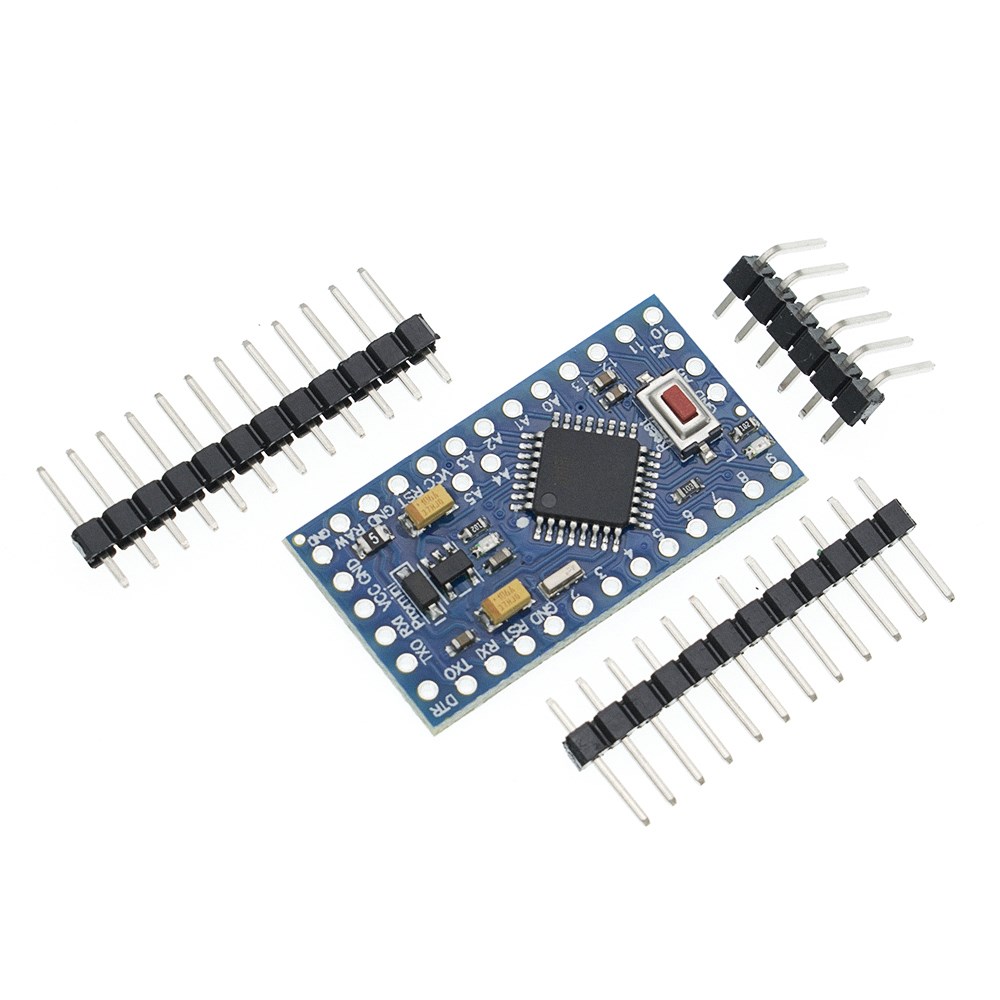

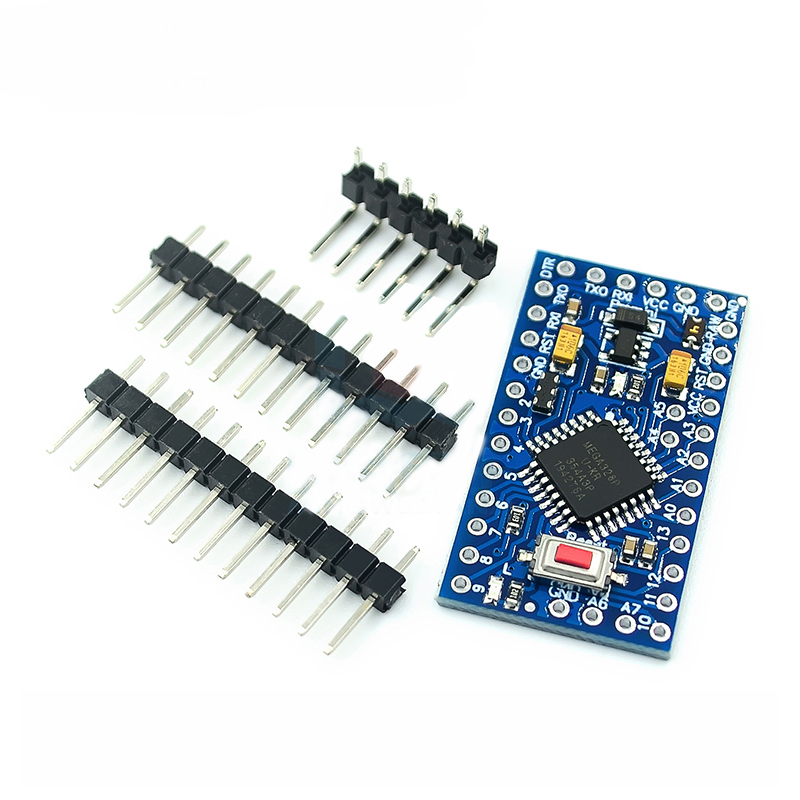

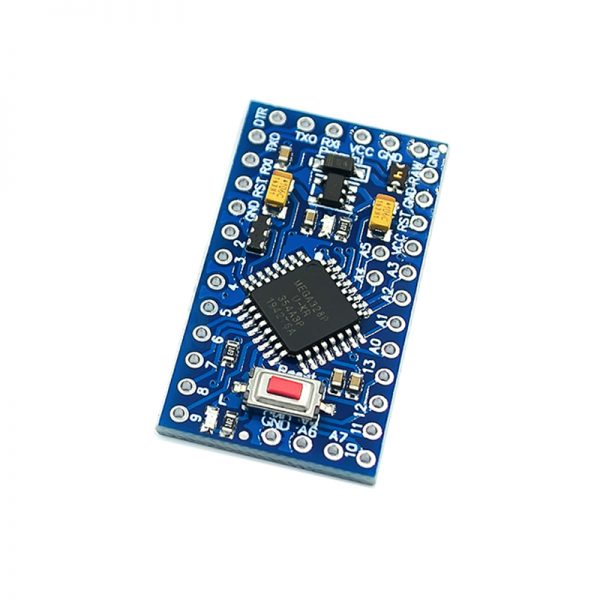

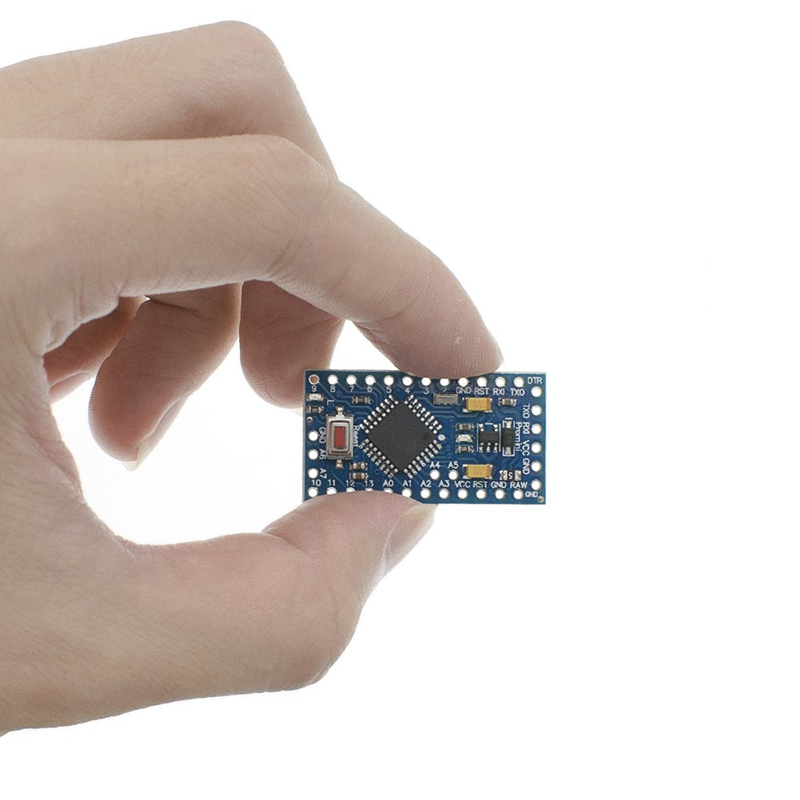

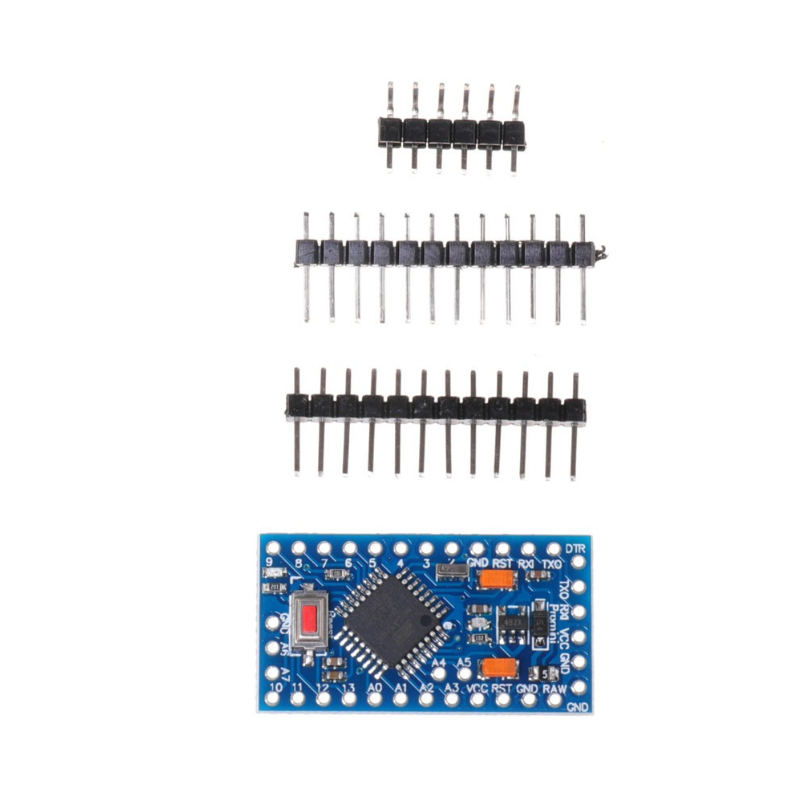

The professional version of Mini Pro is a microcontroller circuit board. It has 14 digital input/Output pins (6 of them can be used as a PWM output), 8 analog inputs, a 16MHz/8MHz resonator, a reset button, and mounting holes to the pin head.
Output Voltage: 5V & 3.3V Optional
Crystal oscillator Frequency: 16MHz or 8MHz Optional
| Technical parameters
1. 14 digital input/output port RX and TX, D2 ~ D13, |
| Weight | 0.005 kg |
|---|---|

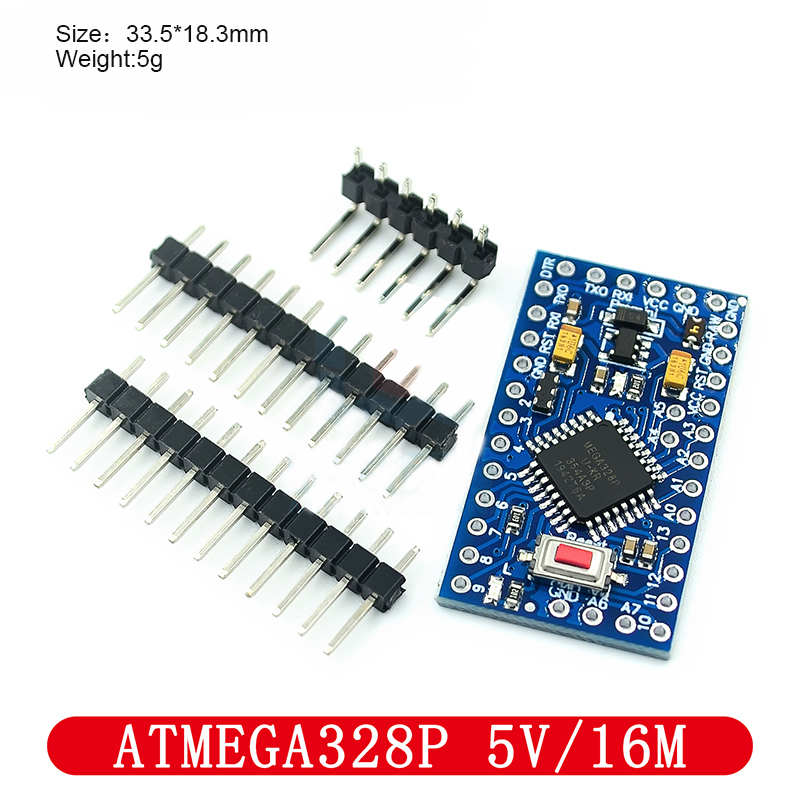

| Dimensions | 3.3 × 1.8 cm |

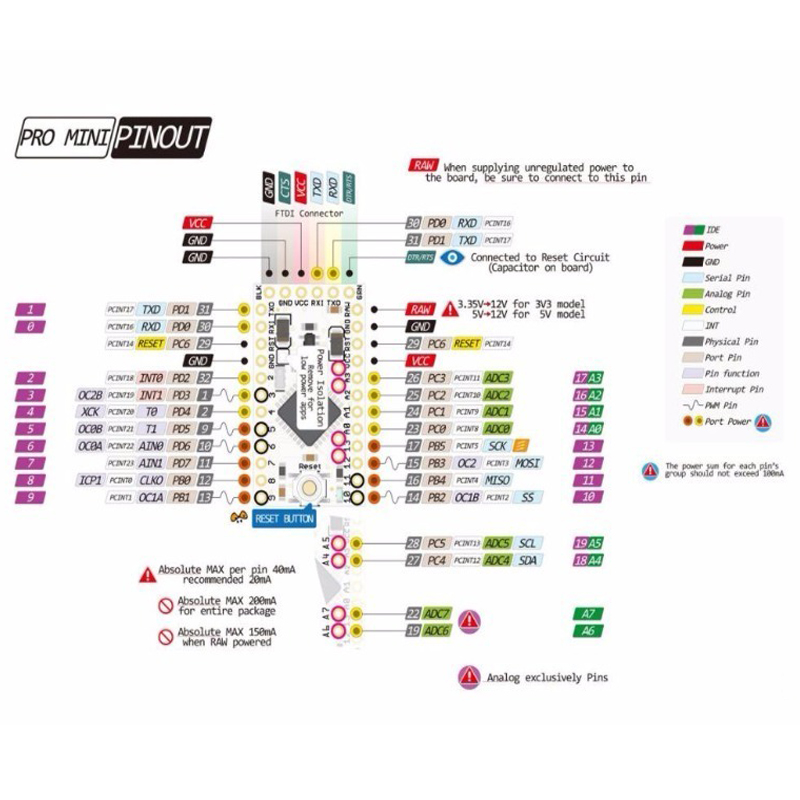

| Digital input/Output Port | 14 Digital input/Output Port Rx, TX, D2~D13 |
| Analog input Ports | 8 Analog input Ports A0~A7 |
| TTL level serial port | One Pair TTL level serial port RX/TX |
| PWM ports | 6 PWM ports, D3, D5, D6, D9, D10, D11 |

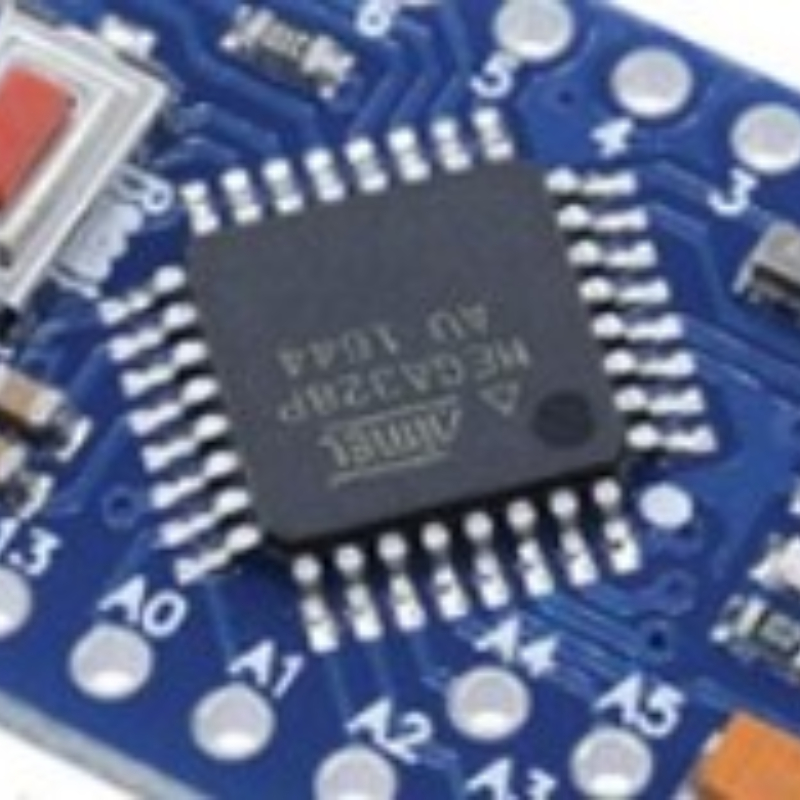

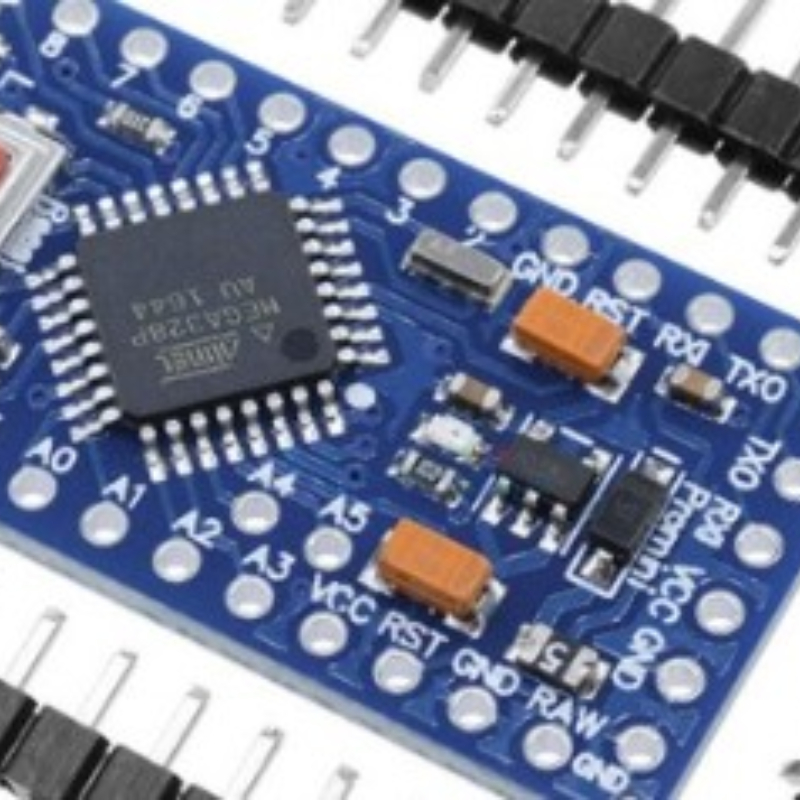

| Chip | With Atmel Atmega328p |
| Serial Download | Support Serial Download |
| DC power supply | Support external 3.3V-12V DC power supply |
| Battery power supply | Supports 9V battery power supply |
